Super Bright 2835 White LED 6000-6500K Cool White

Super Bright 2835 White LED 6000-6500K Cool White

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

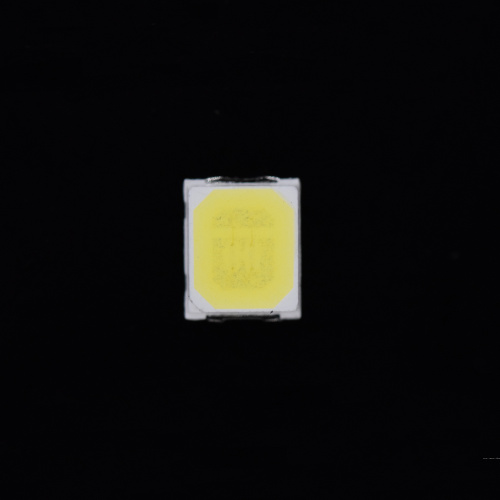

- 2835 SMD LED -

2835WC-60K130L3W

White LED are not the same with other color's LED. When you looking for some white LED, you need to let the supplier know which color temperature you need on your project. Yellow-ish or bluish, that's can be represented by the symbol K. Typically, the more high number you need on color temperature, the more bluish white color you will got on the white LED. 2835 White LED was made by the blue LED bare die inside, after we put the blue led chip in side, we use the yellow fluorescent powder to cover and protect the bare die. With this way, blue LED can through this yellow fluorescent power to emits white LED color.This color temperature can be adjust by how many you put the yellow fluorescent in there.

2835 SMD LED 6000-6500K

- Size: 3.5*2.8*0.8mm

- Chip Number: 1 chip

- Color: cold White

- Type: Surface mount device

- Chip brand: sanan

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

2835 smd led size

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	1000mW
Pulse Forward Current	IFP	1000mA
Forward Current	IF	350mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	1000v
Warranty	Time	5Years
Antistatic bag	Piece	4000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

3.0

3.4

V

IF=300mA

Luminous Flux

Φ

120

130
lm

IF=300mA

Color Temperature

TC

6000

6500

k

IF=300mA

6500

7000

Color Rendering Index

Ra

80

IF=300mA

CIE 1931 Coordinate

XY

X:0.30

Y:0.30

IF=300mA

Half Width

Dl

20

nm

IF=300mA

Viewing Half Angle

2q1/2

±60

deg

IF=300mA

Reverse Current

IR

10

uA

VR=5V

Rise Time

Tr

25

ns

IF=300mA

Fall Time

Tf

13

ns

IF=300mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Related White SMD LED -

- Production -

- Use -

SMD LED Use of attention
