Super Bright 2835 Cool White LED 7000-7500K 350mA

Super Bright 2835 Cool White LED 7000-7500K 350mA

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 2835 SMD LED -

2835WC-70K120L3W

The color temperature are conventionally expressed in Kelvin and It can be represented by the symbol "K". Such as 7000K cool white, 7500K cool white, 20000K cool white ect. When the number getting large, the white color will also be more bluish. And the color will be more yellowish when the number goes down. 2835 White LED was made by the blue LED bare die inside, after we put the blue led chip in side, we use the yellow fluorescent powder to cover and protect the bare die. With this way, blue LED can through this yellow fluorescent power to emits white LED color.This color temperature can be adjust by how many you put the yellow fluorescent in there. Do you need some cool white LED? Contact us now~

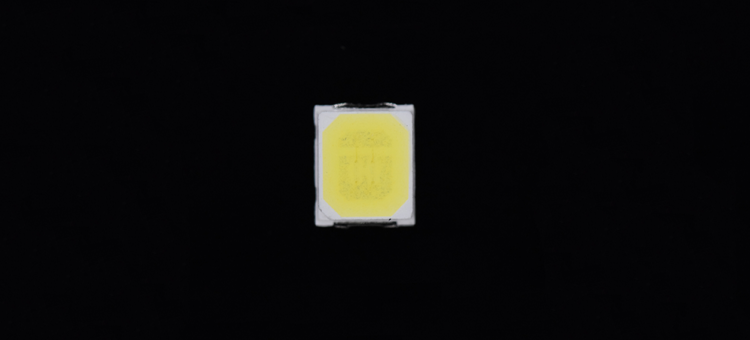

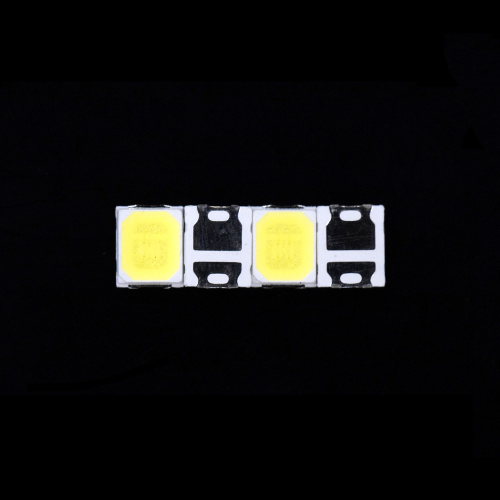

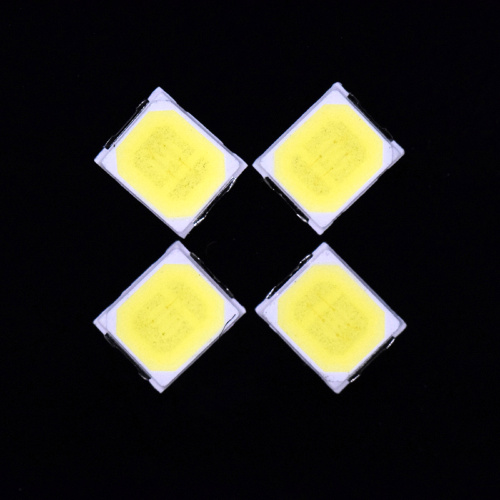

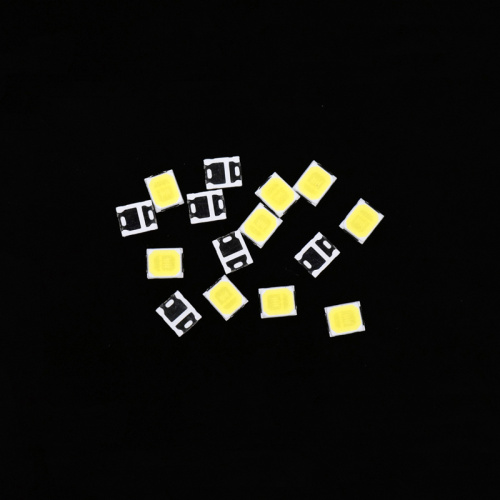

2835 SMD LED - Cool White 7500K

- Size: 3.5*2.8*0.8mm

- Chip Number: 1 chip

- Color: cold White

- Type: Surface mount device

- Chip brand: sanan

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

2835 smd led size

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	1000mW
Pulse Forward Current	IFP	1000mA
Forward Current	IF	350mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	1000v
Warranty	Time	5Years
Antistatic bag	Piece	4000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

3.0

3.4

V

IF=300mA

Luminous Flux

Φ

120

130
lm

IF=300mA

Color Temperature

TC

7000

7500

k

IF=300mA

7500

8000

Color Rendering Index

Ra

80

IF=300mA

CIE 1931 Coordinate

XY

X:0.30

Y:0.30

IF=300mA

Half Width

Dl

20

nm

IF=300mA

Viewing Half Angle

2q1/2

±60

deg

IF=300mA

Reverse Current

IR

10

uA

VR=5V

Rise Time

Tr

25

ns

IF=300mA

Fall Time

Tf

13

ns

IF=300mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Related White SMD LED -

- Production -

- Use -

SMD LED Use of attention

Send your message to this supplier

* From:
* To:

Ms. Amy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

2835 Cool White Smd Led , High Brightness 2835 Smd Led , 2835 White LED 7000K

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	3.0		3.4	V	IF=300mA
Luminous Flux	Φ	120		130	lm	IF=300mA
Color Temperature	TC	7000		7500	k	IF=300mA
Color Temperature	TC	7500		8000	k
Color Rendering Index	Ra	80				IF=300mA
CIE 1931 Coordinate	XY		X:0.30 Y:0.30			IF=300mA
Half Width	Dl		20		nm	IF=300mA
Viewing Half Angle	2q1/2		±60		deg	IF=300mA
Reverse Current	IR			10	uA	VR=5V
Rise Time	Tr		25		ns	IF=300mA
Fall Time	Tf		13		ns	IF=300mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
