900nm LED Infrared Emitter 2835 SMD LED

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 2835 SMD LED -

2835FIRC-90L/13I100

2835 SMD LED case are available for kinds of emitting diode. 900nm emitting diode are one of them. Typically, 900nm LED is a invisible infrared LED. When it's working, you cannot see any light on it by naked eyes. Then people may wondering, how we can know it's working? The answer is, your phone. Take your phone and turn on the camera, then you can see a pink (or light purple) color in the middle of the infrared LED. The longer wavelength, the more brighter of the pink(or purple) color of the IR LED. In Best LED factory, when we put 700nm LED, 810nm LED and 900nm LED on the camera for comparison. We do found this similarly, a comparative test under the camera showed that the light in the red part was getting weaker and weaker, when the wavelength getting longer and no red spots could be seen at 940 nm.900 nm infrared is mainly used as testing instrument, 940 nm for detecting blood gas, blood sugar and so on. It is mainly used as remote control for position locking

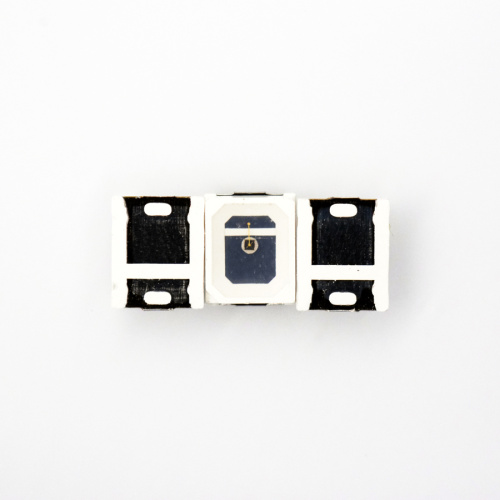

900nm infrared LED - 2835 SMD LED

- Size: 3.5*2.8*0.8mm

- Chip Number: 1 chip

- Color: 900nm LED

- Type: Surface mount device

- Chip brand: Tyntek

- Nick mark: Anode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

900nm IR LED

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	230mW
Pulse Forward Current	IFP	350mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	4000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.6		2.2	V	IF=100mA
Pulse Forward Voltage	VF		2.8		V	IFP=350mA
Radiant Intensity	IE	25		32	mw/sr	IF=100mA
Peak Wavelength	λP	890	900	910	nm	IF=100mA
Total Radiated Power	PO		4.2		mw	IF=100mA
Half Width	Dl		50		nm	IF=100mA
Viewing Half Angle	2q1/2		±60		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		600		ns	IF=100mA
Fall Time	Tf		300		ns	IF=100mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
