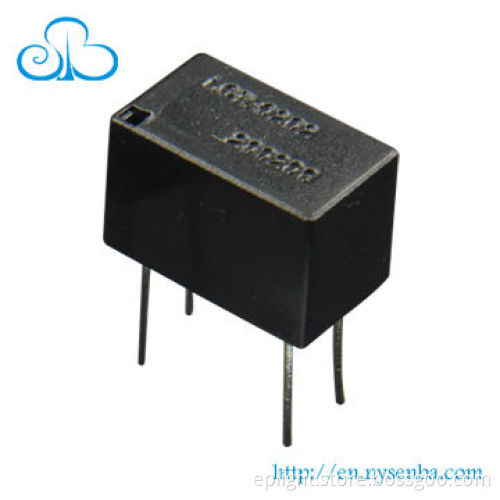

LCR 0202 Analog Optotransistor for Sound Control

Specifications Analog Optoisolator

1.Direct Supply

2.High quality with patent

3.12 Years factory

4.Good service& rapid shipping

Analog Optotransistor LR0202 for Sound Control   Specifications   Opto-coupler/Analog Linear Coupling/Analog Optoisolator/Analog Optotransistor
1.Pure resistor and non-polarity output      Analog Linear Optical Coupling   LCR0202      Analog Linear Optical Coupling is photoelectric component by inputting the different current to control the changes of resistance. It makes use of CdS and LED semi-conductor with rigorous selection, aging and test. The product is widely used by current input control and pure resistance with non-polarity output.Our company own the patent of manufacturing and the patent number is ZL02225334.3.   Characteristics
Pure resistor and non-polarity output .
Wide range of analog linear resistance, the low “on”resistance, high “off”resistance.
Simple circuit configuration suitable for DC and AC use.
Input to output isolation, and low distortion coupling.
Encapsulation with PPO high-temperature resistant material.      Application   * Acoustic protect and control. * Motoor speed velocity * Color lamp control * Communication transmission * Audio and video equipment
* Volume control * Automatic control.
* Toy control
* Steady lighting     Input  Figure  and Dimensions

LCR-0203	Dimensions
Cylindric Diameter	6.0mm
Cylindric Long	13.5mm
Output Lead Length	27.5mm
Input Lead Length	25.0mm
Lead Diameter	0.45mm
Lead Gap	2.8mm
Input Polarity Sign⊕	LED anode-lead
Ektexine Material	PVC

  Technical Specifications Input forward current: 0-40mA Input forward voltage DROP: 1.6-2.0VDC(The voltage drop range between pin4 and pin1) ON Resistance: 100-200Ohm OFF Resistance: on less than 1moHM (Measured 10ses. asfter removal of the input) Output power dissipation: 100mW max Lnsulation voltage: 2500VDC Operating temperature: -30--+70°C
