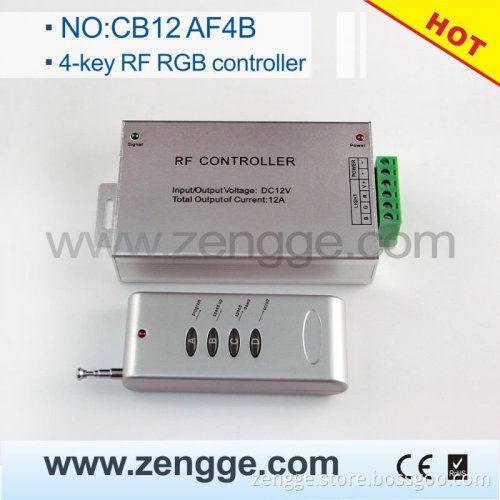

new product! RF 4-key RGB LED controller with CE&RoHS(Aluminum version)

Specifications 1.Micro-computer control

2.easy connection,simplicity usage

3.jumpy,fade changes

4.speed adjustment

5.power down memory

Technicial Parameter:

Working temperature	-20-60 °C
Supply voltage	DC12V, 24V(order specify required voltage)
Size	L127*W65*H24mm
Net weight	160.5g
Gross weight	195.5g
Output	Three CMOS drain- open output
Output current	<4A(each channel)
Output power	12V:<144W,24V:<288W
Connecting Mode	Common anode/ cathode
Transmission/receiving frequency	433MHz

  Function: Adopt wireless control method, function of each button as below: Button “A” : is the style/color function key, could choose different color changes Button “B”: each press changing speed +1 Button “C”: each press changing speed -1 Button “D”: The output switch. Style changing table as below:

Item	Patterns	remarks
1	Static red
2	Static Green
3	Static Yellow
4	Static Blue
5	Static Pink
6	Static cyan
7	Static white
8	3 Color step change	Button B and C is valid
9	7 Color step change	Button B and C is valid
10	3 Color fade change	Button B and C is valid
11	7 Color fade change	Button B and C is valid

  Packing 1pc in white box, White box:  L137*W78*H57mm 100pcs/carton, carton size:L23'*W15.8'*H11.8'/2.48'   Panel specification and connecting drawing as follows:     Our Services: 1. Your inquiry related to our products or prices will be replied in 24 hours 2. Well-trained and experienced staffs to answer all your enquires in fluent English 3. OEM and ODM, any your customized Lighting & Controller we can help you design put into product 4. Distributorship are offered for your unique design and some our current models 5. Protection of your sales area, ideas of design and all your private information
