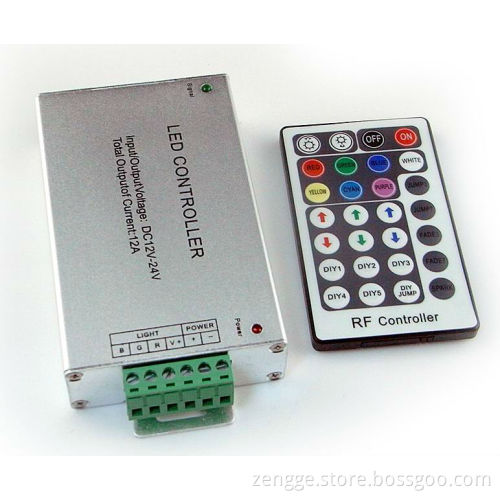

DC12V-24V RF 28Key Remote LED Controller For RGB 5050 LED Strip

Specifications 1.28 Key Remote LED Controller

2.RF LED Controller

3. DC12V-24V LED Controller

4.CE&RoHS

          DC12V-24V RF 28Key Remote LED Controller For RGB 5050 LED Strip   Summarization   RF 28-key LED RGB controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection ,simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing and other effects of change. Total 28 modes for your choice.   Technicial Parameter:

Working temperature	-20-60 °C
Supply voltage	DC5V, 12V, 24V
Size	L127*W65*H24mm
Net weight	190g
Output	Three CMOS drain- open output
Output current	<4A(each channel)
Output power	5V:<60W,12V:<144W,24V:<288W
Connecting Mode	Common anode/ cathode

  External Dimension:     Remote control dimension:   Control method:   1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not  occur between connecting wire before you turn on the power; 2. Standard color changes as follows:

Brightness +( 8 in all )	Brightness-(8 in all )	Off	On
Static red	Static green	Static blue	Static white
Static Yellow	Static cyan	Static purple	3 base color jumpy
Increase red	Increase green	Increase blue	7 colors jumpy
Decrease red	Decrease green	Decrease blue	3 base colors fade change
DIY1	DIY 2	DIY 3	7 colors fade change
DIY4	DIY5	DIY jumpy change	Spark

  Key instruction:     Connecting drawing   series connection:     parallel connection:       Packing: 1pc in white box, White box:  L137*W78*H57mm 100pcs/carton, carton size:L23'*W15.8'*H11.8'/2.48'   Our Services: 1. Your inquiry related to our products or prices will be replied in 24 hours 2. Well-trained and experienced staffs to answer all your enquires in fluent English 3. OEM and ODM, any your customized Lighting & Controller we can help you design put into product 4. Distributorship are offered for your unique design and some our current models 5. Protection of your sales area, ideas of design and all your private information     Related Products ...
