new 2013! RF 4-Key LED controller Iron(CE&RoHS)
  • new 2013! RF 4-Key LED controller Iron(CE&RoHS)
new 2013! RF 4-Key LED controller Iron(CE&RoHS)
new 2013! RF 4-Key LED controller Iron(CE&RoHS)
new 2013! RF 4-Key LED controller Iron(CE&RoHS)

new 2013! RF 4-Key LED controller Iron(CE&RoHS)

Payment Type:
T/T, Western Union, paypal
Min. Order:
50 Set/Sets
Min. Order:
50 Set/Sets
Delivery Time:
5 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Supply Ability: 10000 Set/Sets per Week
Payment Type: T/T,Western Union,paypal
Product Description
Product Description
Specifications 1.Micro-computer control

2.easy connection,simplicity usage

3.jumpy,fade changes

4.speed adjustment

5.power down memory

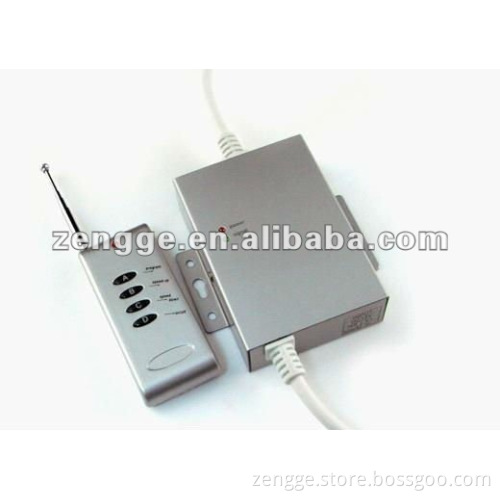

NAME: RF 4-Key LED controller(Iron) MODEL: CT12 AF4BLL        Summarization       RF 4key LED RGB controller adopts the advanced micro control unit, it is used for controlling a variety of lampwhose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection ,simplicity touse and others. According to the actual need of customers, it can carry out jumpy changing, gradual changingand other effects of change. Total 11modes for your choice.      Technical parameters        Working temperature: -20-60 °C      Voltage supply: DC5V, 12V, 24V <optional> (for orders specify voltage)      Output: 3 channels      Connecting mode: common anode or common cathode     External dimension: L95ΧW65ΧH25 mm     Net weight: 224g      Gross weight: 266g      Static power consumption: <1 W      Output current: <4 A (each channel)      Output power: 5 V: <60W, 12V: <144W, 24V: <288W     External Dimension   Controller dimension:        Remote control dimension:             Direction for use   1. Connect the load wire at first, following by the power wire; Please ensure short circuit can’t occur between      connecting wire before you turn on the power;   2.Standard color changes as follows:

Item

Patterns

remarks

1

Static Red



2

Static Green



3

Static Yellow



4

Static Blue



5

Static Pink



6

Static cyan



7

Static white



8

3 color jump change

Button B and C is valid

9

7 Color jump change

Button B and C is valid

10

3 Color fade change

Button B and C is valid

11

7 Color fade change

Button B and C is valid

    Key instruction:           Connecting drawing:         Packing: 1pc in white box, White box:  L150xW102xH57mm 50pcs/carton, carton size:L20.5'*W11.8'*H13'/1.82'   Our Services: 1. Your inquiry related to our products or prices will be replied in 24 hours 2. Well-trained and experienced staffs to answer all your enquires in fluent English 3. OEM and ODM, any your customized Lighting & Controller we can help you design put into product 4. Distributorship are offered for your unique design and some our current models 5. Protection of your sales area, ideas of design and all your private information
