Rosemount water Analysis Instruments Analytical Threaded In - Line , Submerged or
Ball - valve Insertion RB pH Sensor

Quick Detail:

· Manufactured by Rosemount Analytical

· 0 to 14 pH measuring range

· Chemically resistant KYNAR

· Rugged, quick change, quick clean

· Max temp: 266°F/130°C at 40 psig/276 KPa

· Max pressure: : 150 psig/1035 KPa at 158°F/70°C

· Model RB-546:

o 3/4" MPT threaded nose

o Submerged; 3/4" MNPT threaded top

· Model RB-547:

o 1" MPT process fitting or, 1¼" and 1½" ball valve assemblies

o 1" MNPT process fitting, into 1" FNPT coupling or ¾" submersion extension pipe

Description:

The Rosemount Analytical Model RB pH Sensor is designed for extended sensor life when used in applications with sulfides which are typically found in scrubbers. The Model RB is made with chemically resistant KYNAR. Optional installation methods allows standardization of entire plant with a minimum of sensor part numbers.

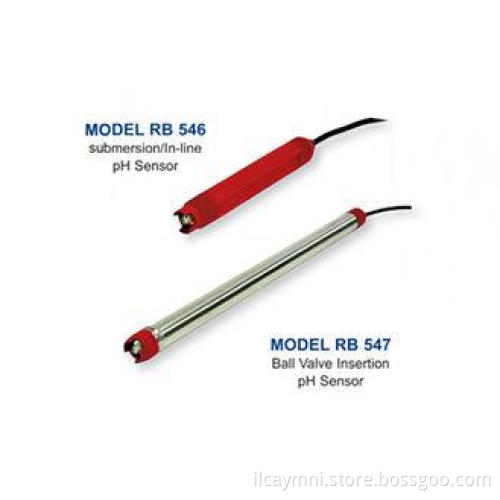

The Model RB pH Sensor is built with a Kynar body and is designed in two configurations. The 546 sensor is housed in a fully encapsulated body for use in pipe tees or submersed in a tank. The 547 is the ball valve retractable version; the sensor body can be replaced and the titanium sensor sheath assembly (sold separately) can be reused. Both sensor types are built with a high performance J glass, notched tip with a Teflon junction, and a PT100 RTD. The integral cable is prepared with tinned leads for easy wiring.

Applications:

Rosemount RB Threaded In-Line, Submerged or Ball-valve Insertion pH Sensor is used for PH measurement

Specifications:

Sensor Type: Poison Resistant pH
Measured Range: pH: 0-14
Maximum Temperature: 266°F/130°C at 40 psig/276 KPa
Maximum Pressure: 150 psig/1035 KPa at 158°F/70°C
Maximum Insertion/Retraction Pressure:
(option 546) 65 psig/448 KPa at 158°F/70°C
(option 547) 40 psig/276 KPa at 266°F/130°C

Competitive Advantage:

1. Maximum sensor life due to proprietary multi-junction which hinders reference poisoning.
2. Chemically resistant KYNAR
3. Rugged, quick change, quick clean.
4. Optional installation methods allows standardization of entire plant with a minimum of sensor part numbers.
5. Assembled in a reusable Titanium sheath, Hi-Pressure body (Model RB-547).
