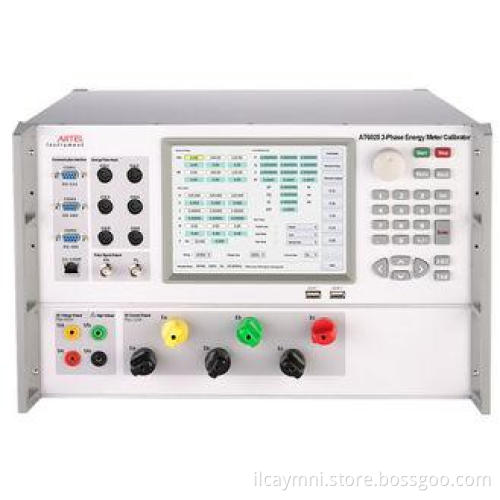

AT6025 is suitable for the measurement departments of power supply corporation, national

measurement institution at all levels, and energy meter manufacturer, etc.

Main function:

Calibrate all kind of single/three phase electronic/inductive active and reactive energy meter;

Automatically or single-step manually test basic error, creeping, starting, standard deviation of

single/three phase energy meter, save user-defined calibrating scheme in Auto calibration;

Support variables influence tests, such as: Voltage, frequency, harmonics, reverse phase sequence,

Voltage unbalance, etc.

Support special tests in energy meter type test, such as: phase triggering, pulse train triggering, etc.

Support DLT-645 communication protocol,multitesting of multifunction meter such as: demand indication

error, demand cycle error, time slot switching error, energy error of different tariff period, etc.

With OCXO, daily error of energy meter can be detected;

Output 2nd ~63rd harmonics.

Main features:

8” color touch screen, interface friendly, easy to operate;

Equipped with RS232, Ethernet, and WiFi interface, AT6025 can either support stand-alone operation,

PC control or handy wireless terminal control;

Communicate with tested meters thru RS-485;

Automatically calculate the error of meter, and the related data can be downloaded thru U-disk;

Self-protection, alarming and displaying overload location for equipment output overload, Voltage short-circuit, Current open-circuit;

Automatically detect, diagnose and alarm for failure.

Remotely updating online, easily achieve software updating;

Support calibrating by userself.

Type

AT6025C 3-phase Energy Meter Calibrator (100A), Class 0.05

AT6025B 3-phase Energy Meter Calibrator (100A), Class 0.1

Technical Specification

AC Voltage output:

Range: 100V, 220V, 380V;

Adjusting range: (0~120) %RG, RG refers to range;

Adjusting resolution: 0.01%RG, 0.1%RG, 1%RG, or 10% RG;

Stability: 0.01%/2min (Class 0.05), 0.02%/2min (Class 0.1);

Distortion: ≤0.2% (Non capacitive load);

Max output load: 20VA each phase;

Accuracy: 0.05%RG (Class 0.05), 0.1%RG (Class 0.1);

AC Current output:

Range: 0.05A, 0.2A, 1A, 5A, 20A, 100A;

Adjusting range: (0~120) %RG, RG refers to range, similarly hereafter;

Adjusting resolution: 0.01%RG, 0.1%RG, 1%RG, or 10% RG;

Stability: 0.01%/2min (Class 0.05), 0.02%/2min (Class 0.1)

Distortion: ≤0.2% (Non capacitive load);

Max output load: 120VA (100A range)

Accuracy: 0.05%RG (Class 0.05); 0.1%RG (Class 0.1)

Power output

Power output stability: 0.01%/2min (Class 0.05), 0.02%/2min (Class 0.1)

Active/reactive power measurement accuracy: 0.05%RG;

Phase output

Output adjusting range: 0°~360°;

Output adjusting resolution: 10°, 1°, 0.1°, or 0.01°;

Resolution: 0.01°;

Measurement accuracy: 0.05°.

Power factor output:

Adjusting range: -1 ~ 0 ~ +1;

Measuring resolution: 0.0001;

Measurement accuracy: 0.0005

Frequency output

Adjusting range: 40Hz ~70Hz;

Output adjusting resolution: 1Hz, 0.1Hz, 0.01Hz, or 0.001Hz;

Resolution: 0.001Hz;

Accuracy: 0.002 Hz.

Harmonic setting

Harmonic order: 2nd ~63rd

Harmonic amplitude: 0~40%

Harmonic angle: 0°~359.99°

Harmonic set error: 2~31times: ≤±0.1%, 32~63 times: ≤±0.2%;

Energy error measurement:

Active energy basic error limit:

±0.05%RD (Voltage 15V~660V, Current 0.02A~120A, PF≥0.5);

±0.1%RD (Voltage 15V~660V, Current 0.01A~0.02A, PF=1);

Reactive energy basic error limit:

±0.1%RD (Voltage 15V~660V, Current 0.02A~120A, PF≥0.5);

±0.2%RD (Voltage 15V~660V, Current 0.01A~0.02A, PF=1);

Energy pulse input

Input pulse: 3 channels active, 3 channels reactive

Other parameters:

Power supply: 90-265VAC/DC

Power frequency: 50Hz~60Hz

Power consumption: 50VA~1000VA

Environment condition: 20℃~30℃,Humidity: RH≤85%

Storage environment: -20℃~50℃

Size: 600mm(L)× 440mm(W)× 266mm(H)

Weight: 35kg
