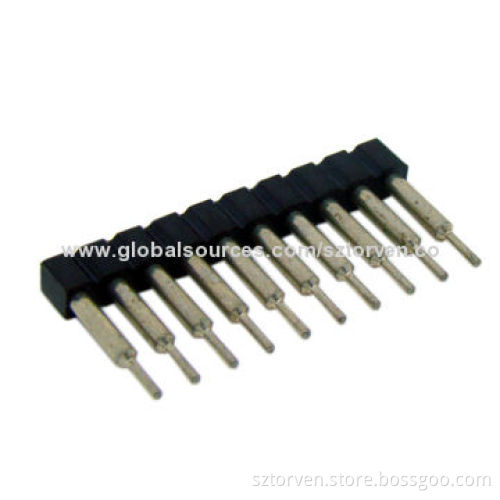

Machined Pin Socket Connector, 254mm, Singe Row and Dual Row, Customized Pin Length
  • Machined Pin Socket Connector, 254mm, Singe Row and Dual Row, Customized Pin Length
Machined Pin Socket Connector, 254mm, Singe Row and Dual Row, Customized Pin Length
Machined Pin Socket Connector, 254mm, Singe Row and Dual Row, Customized Pin Length
Machined Pin Socket Connector, 254mm, Singe Row and Dual Row, Customized Pin Length

Machined Pin Socket Connector, 254mm, Singe Row and Dual Row, Customized Pin Length

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Materials:
    • Pin (outer sleeve): brass, machined CuZn38Pb2
    • Clip (contact 4 finger): beryllium copper, heat treated
    • Plating (outer sleeve):
      • Tin plated: 2µm/80µin Ni, 5µm/150µin Sn
    • Plating (contact): 2µm/80µin Ni, gold 1µin plated
    • Insulator (black): glass filled thermoplastic polyester, UL94V-0 PBT
  • Electrical:
    • Current rating: 3Amps/contact maximum
    • Contact resistance: ≤4mΩ/contact
    • Insulation resistance: ≥1000MΩ at V = 100V
    • Operating voltage: 60V AC/DC
  • Mechanical:
    • Average insertion force with steel pin of % c0.43mm/0.17 inch: <250g
    • Average withdrawal force with steel pin of % c0.43mm/0.17 inch: >50g minimum
    • Mechanical life cycle: 200 minimum
    • Operating temperatures:
      • Gold plated: -55 to 105°C
      • Tin plated: -40 to 105°C
  • Pin (outer sleeve): brass, machined CuZn38Pb2
  • Clip (contact 4 finger): beryllium copper, heat treated
  • Plating (outer sleeve):
    • Tin plated: 2µm/80µin Ni, 5µm/150µin Sn
  • Plating (contact): 2µm/80µin Ni, gold 1µin plated
  • Insulator (black): glass filled thermoplastic polyester, UL94V-0 PBT
  • Tin plated: 2µm/80µin Ni, 5µm/150µin Sn
  • Current rating: 3Amps/contact maximum
  • Contact resistance: ≤4mΩ/contact
  • Insulation resistance: ≥1000MΩ at V = 100V
  • Operating voltage: 60V AC/DC
  • Average insertion force with steel pin of % c0.43mm/0.17 inch: <250g
  • Average withdrawal force with steel pin of % c0.43mm/0.17 inch: >50g minimum
  • Mechanical life cycle: 200 minimum
  • Operating temperatures:
    • Gold plated: -55 to 105°C
    • Tin plated: -40 to 105°C
  • Gold plated: -55 to 105°C
  • Tin plated: -40 to 105°C
