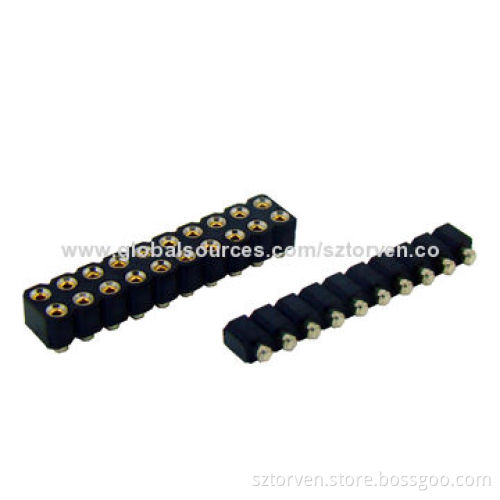

Machined pin socket connector, 254mm surface mount, single row and dual row, 4.2mm pin length

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Materials:

Plating (outer sleeve):

Electrical:

Mechanical:

Average insertion force with steel pin of % c0.43mm/0.17": <250g
Average withdrawal force with steel pin of % c0.43mm/0.17": >50g min
Mechanical lifespan cycle: min 200
Operating temperatures:
- Gold plated: -55 to +105°C
- Tin plated: -40 to +105°C

Pin (outer sleeve): brass, machined CuZn38Pb2

Clip (contact 4 finger): beryllium copper, heat treated

Tin-plated: 2µm/80µ" Ni, 5µm/150µ" Sn

Plating (contact): 2µm/80µ" Ni, gold 1µ" plated

Insulator (black): glass filled thermoplastic polyester, UL94V-0 PBT

Current rating: 3A/contact max

Contact resistance: ≤4mΩ/contact

Insulation resistance: ≥1000MΩ at V=100V

Operating voltage: 60V AC/DC

Average insertion force with steel pin of % c0.43mm/0.17": <250g

Average withdrawal force with steel pin of % c0.43mm/0.17": >50g min

Mechanical lifespan cycle: min 200

Operating temperatures:

Gold plated: -55 to +105°C

Tin plated: -40 to +105°C
