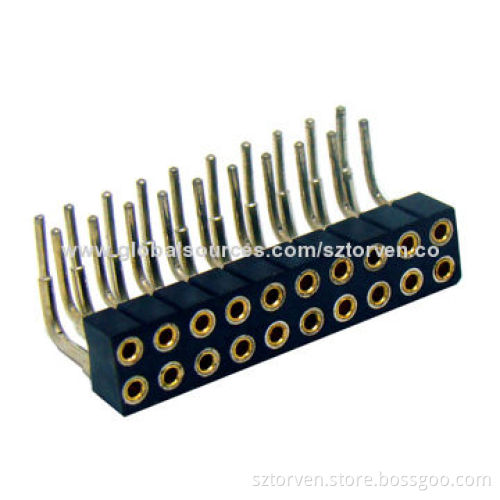

Socket Connector, 2.0mm, Right Angle Dip Type, Single and Dual Row
  • Socket Connector, 2.0mm, Right Angle Dip Type, Single and Dual Row
Socket Connector, 2.0mm, Right Angle Dip Type, Single and Dual Row

Socket Connector, 2.0mm, Right Angle Dip Type, Single and Dual Row

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Materials:
    • Pin (outer sleeve): brass, machined CuZn38Pb2
    • Clip (contact 6 finger): beryllium copper, heat treated
    • Plating (outer sleeve):
      • Tin plated: 2µm/80µ" Ni, 5µm/150µ" Sn
      • Gold plated: 2µm/80µ" Ni, full gold
    • Plating (contact): 2µm/80µ" Ni, gold or tin plated
    • Insulator (black):
      • Glass filled thermoplastic polyester
      • UL94V-0
  • Electrical:
    • Current rating: 1Amps/contact maximum
    • Contact resistance: ≤4mΩ/contact
    • Insulation resistance: ≥1000MΩ at V=100V
    • Operating voltage: 60V AC/DC
  • Mechanical:
    • Average insertion force with steel pin of % c 0.43mm/0.17": <50g
    • Average withdrawal force with steel pin of % c 0.43mm/0.17": >15g minimum
    • Mechanical lifespan cycle: minimum 200
    • Operating temperature:
      • Gold plated: -55 to +105°C
      • Tin plated: -40 to +105°C
  • Pin (outer sleeve): brass, machined CuZn38Pb2
  • Clip (contact 6 finger): beryllium copper, heat treated
  • Plating (outer sleeve):
    • Tin plated: 2µm/80µ" Ni, 5µm/150µ" Sn
    • Gold plated: 2µm/80µ" Ni, full gold
  • Plating (contact): 2µm/80µ" Ni, gold or tin plated
  • Insulator (black):
    • Glass filled thermoplastic polyester
    • UL94V-0
  • Tin plated: 2µm/80µ" Ni, 5µm/150µ" Sn
  • Gold plated: 2µm/80µ" Ni, full gold
  • Glass filled thermoplastic polyester
  • UL94V-0
  • Current rating: 1Amps/contact maximum
  • Contact resistance: ≤4mΩ/contact
  • Insulation resistance: ≥1000MΩ at V=100V
  • Operating voltage: 60V AC/DC
  • Average insertion force with steel pin of % c 0.43mm/0.17": <50g
  • Average withdrawal force with steel pin of % c 0.43mm/0.17": >15g minimum
  • Mechanical lifespan cycle: minimum 200
  • Operating temperature:
    • Gold plated: -55 to +105°C
    • Tin plated: -40 to +105°C
  • Gold plated: -55 to +105°C
  • Tin plated: -40 to +105°C
