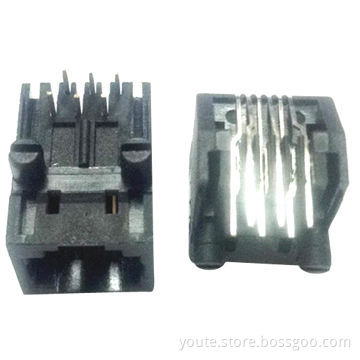

6P4C RJ11 Jack with Rated Current of 1.5A

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T or Western Union

Product Description

Electrical:

Mechanical:

Materials:

Rated current: 1.5A

Rated voltage: 125V AC

Insulation resistance: 500MΩ minimum

Contact resistance: 30MΩ maximum

Withstanding voltage: 1,000V AC RMS, 50 or 60Hz 1min

Insertion force: 2.2kgf maximum

Retention strength: 7.7kgf min between jack and plug

Durability: 600 mating cycles minimum

Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0) and PA46 (UL94V-0)

Contact wire: Ø0.45mm phosphor bronze gold plating over nickel

Shield: 0.20-0.25mm thickness brass with tin plating

Gold plating: Fu",, 3u", 6u", 15u", 30u", 50u"
