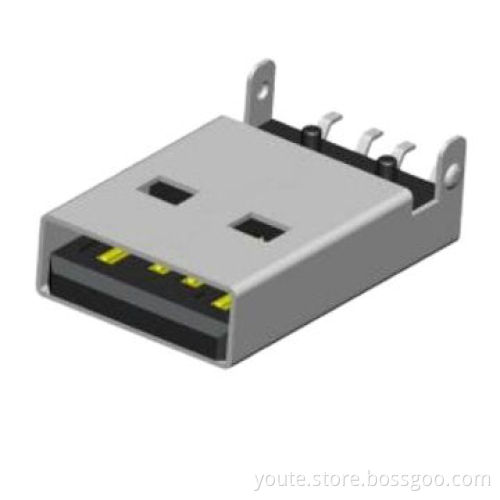

USB connector, 2.0 AM SMT 90, short body corners

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T or Western Union

Product Description

Materials:

Shell: C2680H, T: 0.30, nickel-plated
Terminal: C5191H, T: 0.25, gold plating on contact area, tinplating on solder area
Housing: PBT + GF30% black/white

Mechanical and electrical specifications:

Shell: C2680H, T: 0.30, nickel-plated

Terminal: C5191H, T: 0.25, gold plating on contact area, tinplating on solder area

Housing: PBT + GF30% black/white

Contact resistance: 30mΩ (maximum)

Insulation resistance: 1,000mΩ (minimum), at 500VDC

Rated voltage and current: 1.5A at 250V AC (minimum)

Dielectric withstanding voltage: 500V AC (RMS) for 1minute

Durability (life test): 1,500 cycles

Insertion force: 35 new tones maximum

Extraction force: 10 new tones maximum
