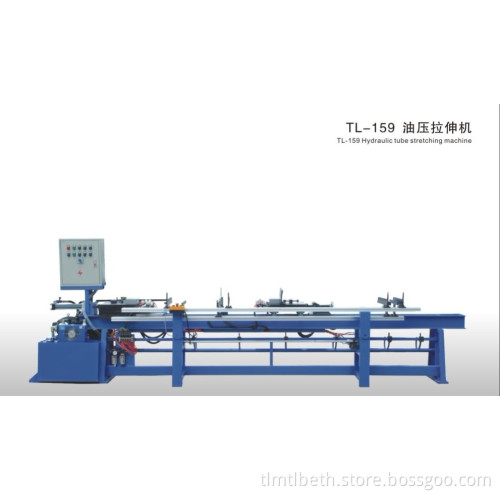

Hydraulic stretching machine for heating element

Detailed Product Description

Used to stretch annealed heating elements

Pull different length to equal length
Hydraulic stretching
Stable performance



Functions:

1. Advanced technology which cuts the cost.
2. Hydraulic stretching, stable quality.
3. PLC control, easy to operate.
4. Accuracy: +/-0.5mm
5. Manual feeding

Main technical parameters:

     1.  Power supply: 3phase 380V 50Hz (can be custom-made)

     2.  Rated power: 3.8KW

     3.  Air supply:5-7 kg/cm²

     4.  Tube diameter: 6mm-16mm ( can be custom-made)

     5.  Efficiency: 5000pcs/8h

     6.  Packing size (L*W*H):3750*1200*1750(mm)(for tube length 2meters)

                                        4800*1200*1750 (mm) (for tube length 3meters)

                                        6200*1200*1750 (mm) (for tube length 4meters)

     7.  Gross weight: 720kg
