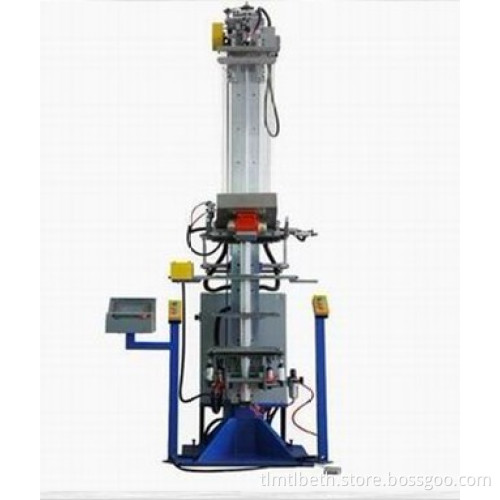

Tube filling machine for heating element

Detailed Product Description

Fill MgO powder inside the heating elements.

Almost zero MgO loss.
Filling speed: 250-350mm/min
For tube length within 2meter

Functions:

1. PLC control, human-computer interface. Vibration frequency can be adjusted.
2. Powder filling density above 2.17g/cm³. Almost zero MgO loss.
3. Tube diameter: below 16mm.
4. Indicate how to clear fault automatically.
5. 12, 18, 24, 36 positions are available
6. Filling speed: 250-350mm/min
7. Min. tube diameter: 5.5mm

Main technical parameters:

1. Power supply: Single phase 220V, 50Hz
2. Rated power: 1.5KW
3. Air supply: 5-7kg/cm²
4. Efficiency: 6500pcs/8h (tube length 250mm)
5. It can fill 24pcs or 36pcs tubes at a time (below 10mm)
6. Packing size (L*W*H):3300*1050*1050(mm) (tube length 1meter)

                                        4500*1050*1050 (mm) (tube length 1.5meters)

                                        5800*1050*1050 (mm) (tube length 2meters)

     7.  Gross weight: 650kg
