SAA Approved orange circular cable As Per AS/NZS 5000.1

SAA Approved orange circular cable As Per AS/NZS 5000.1

$1.00

≥1000 Meter

Min. Order:: 1000 Meter

Min. Order:: 1000 Meter

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	10,000m/week
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Port:	Shenzhen

Product Description

BDK been manufacturing Orange Circulars for decades, we got the SAA approval as early as 2012. Oceania is our main market, including Australia, New Zeland, Fiji, Papua New Guinea..etc. There are many clients that had been working together for more than 10 years.

The PVC CIRCULAR SAA approval covers:

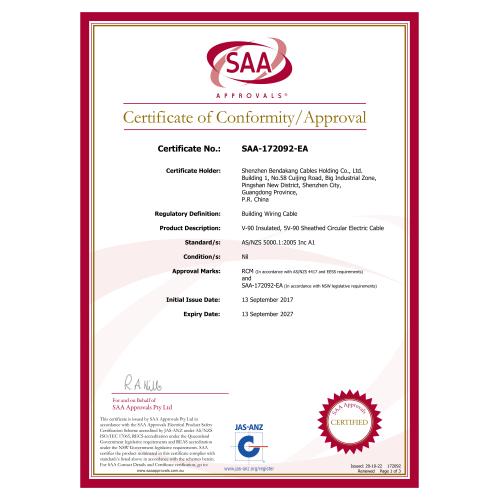

SAA-172092-EA: compulsory certified size: 1.0mm2-16mm2, one core, 2 cores+Earth 3 cores+Earth 4 cores+Earth

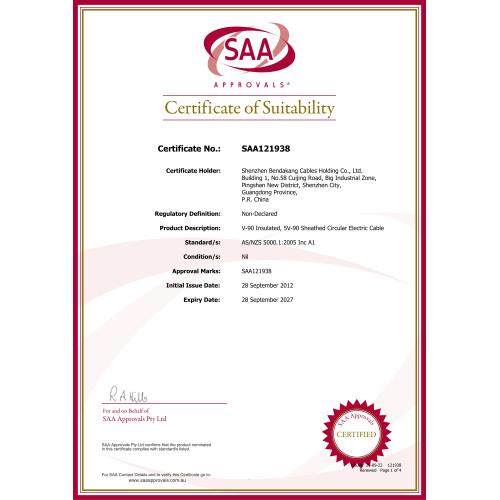

SAA-121938: optional certified size: 25mm2--300mm2 one core, Circulare 2C+E Circulare 3C+E Circulare 4C+E
wide ranges meet your demands.

There are some stocks, MOQ may apply upon detailed request. Different packing available: coil, plastic drum, polywood drum, wooden drum.

Application: These PVC multicore circular cable are used in low voltage power network and power distrution system. They are suitable for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where dry and not subject to mechanical damage.

Orange cable

Specification

item	value
Name	PVC multicore circular cable
Standards	AS/NZS 5000.1 0.6/1kV
Certification	SAA-172092-EA SAA-121938
Cores / Size	Circulare 2C+E Circulare 3C+E Circulare 4C+E 1.0mm2-16mm2 25mm2--300mm2
Conductor	Plain annealed copper as per AS/NZS 1125
Insulation	V-90, XLPE, LSOH
Sheath Material	5V-90
Colore	Orange, or as per request

Company Introduction

BDK is a leading cables wires, Power Cable China cable manufacture , the main products include: Electric Power Cable, XLPE Power Cable, Solar Cable and other electric items.

The construction area cover 300,000 square meters, with around 350 workers, the annual turnover reach USD 0.45 Billion. We are the qualified supplier of State Power Grid, China Southern Power Grid and Vanke Group, Country Garden,ect and other large, medium partners around the world.
