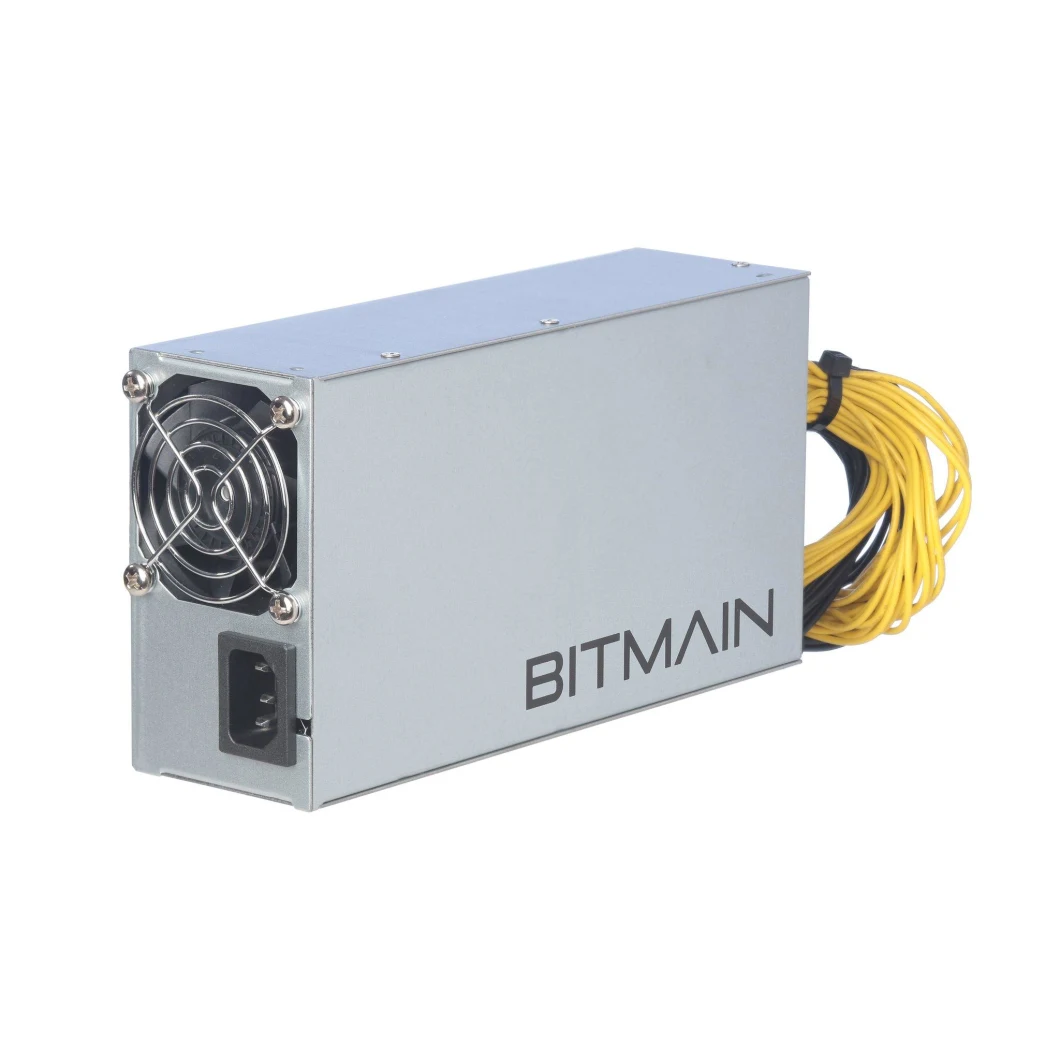

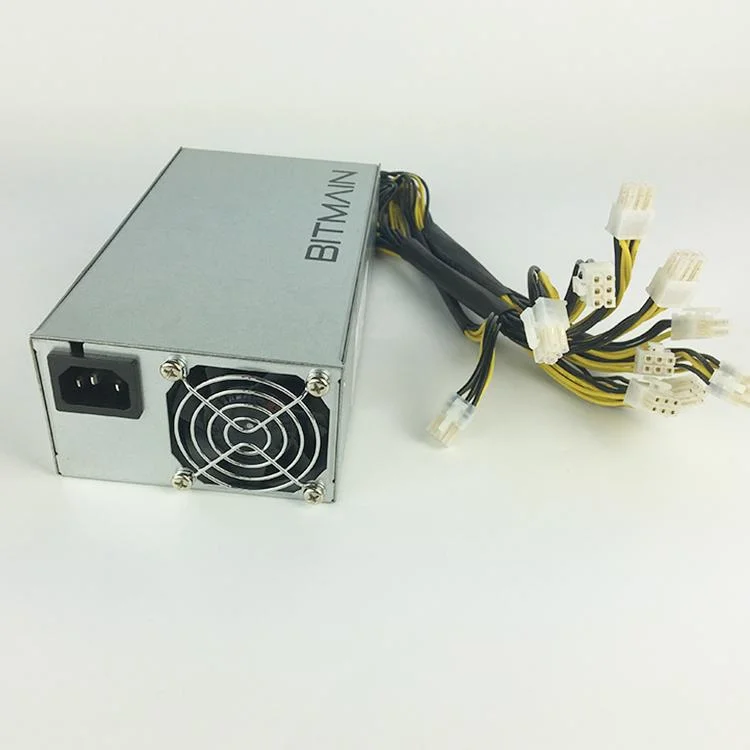

in Stock Used Apw3++ Power Supply PSU
$58.00/Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Supply Ability: | 1000 Pieces/Day |
|---|---|
| Payment Type: | L/C,D/P,Western Union,Money Gram |
| Port: | Shenzhen |
Product Description
Product Description
Features:
DC Voltage: 12.0V
Rated Current (Input 220V): 150A
Rated Power (input 220V): 1800W
Rated Current (Input 110V): 83.3A
Rated Power (input 110V): 1000W
Start-Up Time: Less than 2 seconds
Power of retention time: more than 10ms
Voltage Range:100-264V AC
Frequency Range: 47-63 hz
Power factor: greater than 0.99 (full load)
Leakage Current: Less than 1.5mA
DC Voltage: 12.0V
Rated Current (Input 220V): 150A
Rated Power (input 220V): 1800W
Rated Current (Input 110V): 83.3A
Rated Power (input 110V): 1000W
Start-Up Time: Less than 2 seconds
Power of retention time: more than 10ms
Voltage Range:100-264V AC
Frequency Range: 47-63 hz
Power factor: greater than 0.99 (full load)
Leakage Current: Less than 1.5mA
|
Output
|
DC Voltage
|
12.15V
|
|
Rated Current
|
133A
|
|
|
(220V input)
|
||
|
Rated Current
|
100A
|
|
|
(110V input)
|
||
|
Rated Power
|
1600W
|
|
|
(220V input)
|
||
|
Rated Power
|
1200W
|
|
|
(110V input)
|
||
|
Ripple & Noise
|
<1%
|
|
|
Voltage Regulation
|
<2%
|
|
|
Source Regulation
|
<1%
|
|
|
Load Regulation
|
<1%
|
|
|
Setup, Rise Time
|
<2S
|
|
|
Power off Protection Trip Time
|
>9mS
|
|
|
Interface Type
|

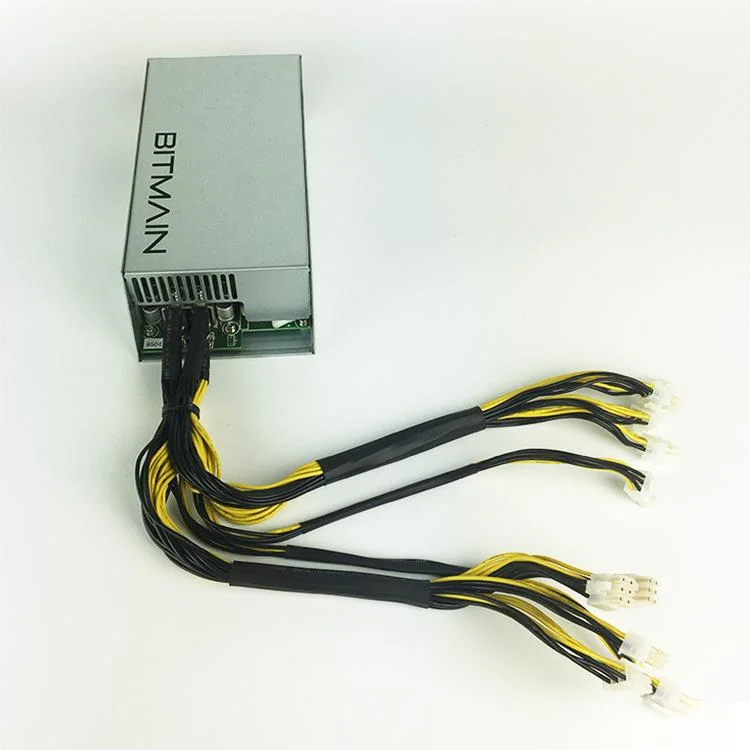

5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors)
|
|
|
Noise Level
|
<43DB
|
|
|
Input
|
Voltage Range
|
100-240V AC
|
|
Starting Voltage
|
95-105V AC
|
|
|
Frequency Range
|
47-63Hz
|
|
|
Power Factor
|
>0.95 (full load)
|
|
|
Leakage Current
|
<1.5mA (220V 50Hz)
|
|
|
Protection
|
Low-voltage Input
|
80-89V AC
|
|
Output Short Circuit
|
Yes
|
|
|
Output Overcurrent
|
134-185A max.
|
|
|
Overheat Protection
|
Yes
|
|
|
Environment Conditions
|
Operating Temperature
|
-20°C - 50°C
|
|
Operating Humidity
|
20% - 90% relative humidity (non-condensing)
|
|
|
Structure
|
Dimensions
|
220mm*108mm*62mm
|
|
Cooling
|
Fan
|
Forced-air cooling
|
