Bitmain Apw12 12V-15V, EMC, PSU, S19, S19 PRO
-
$35.002-98 Piece/Pieces
-
$25.0099-999 Piece/Pieces
-
$15.00≥1000 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Supply Ability: | 5000 |
|---|---|
| Payment Type: | T/T,D/P,Western Union,Paypal,Money Gram |
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
Product Description
Product Description

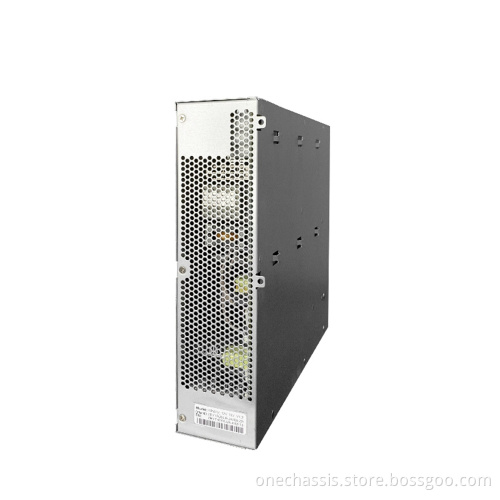

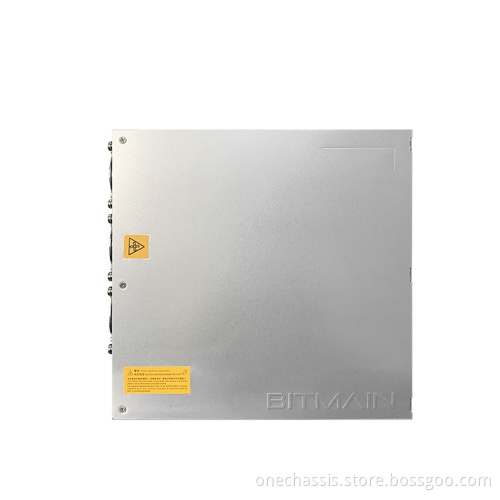

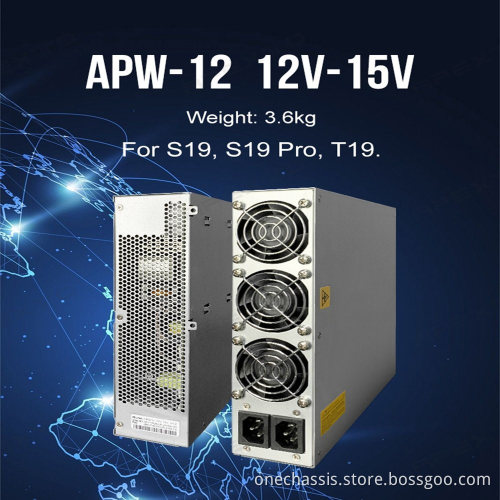

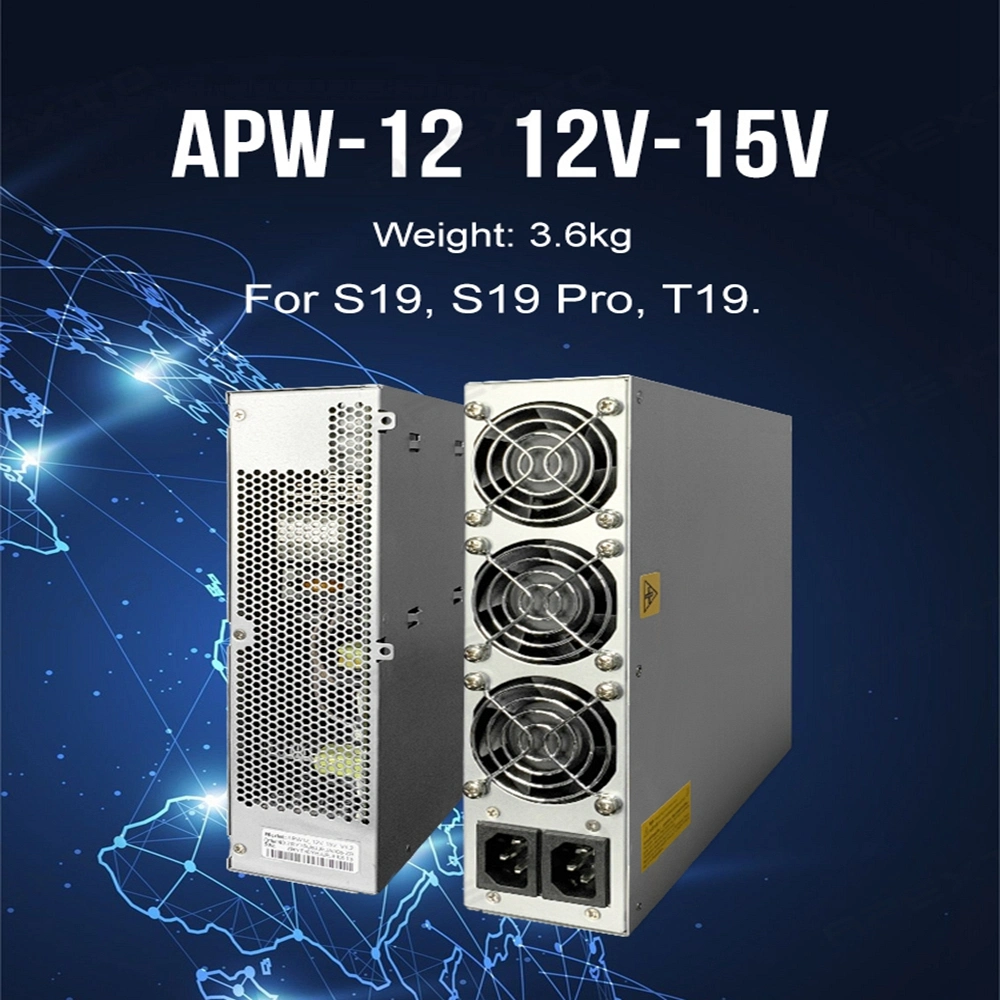

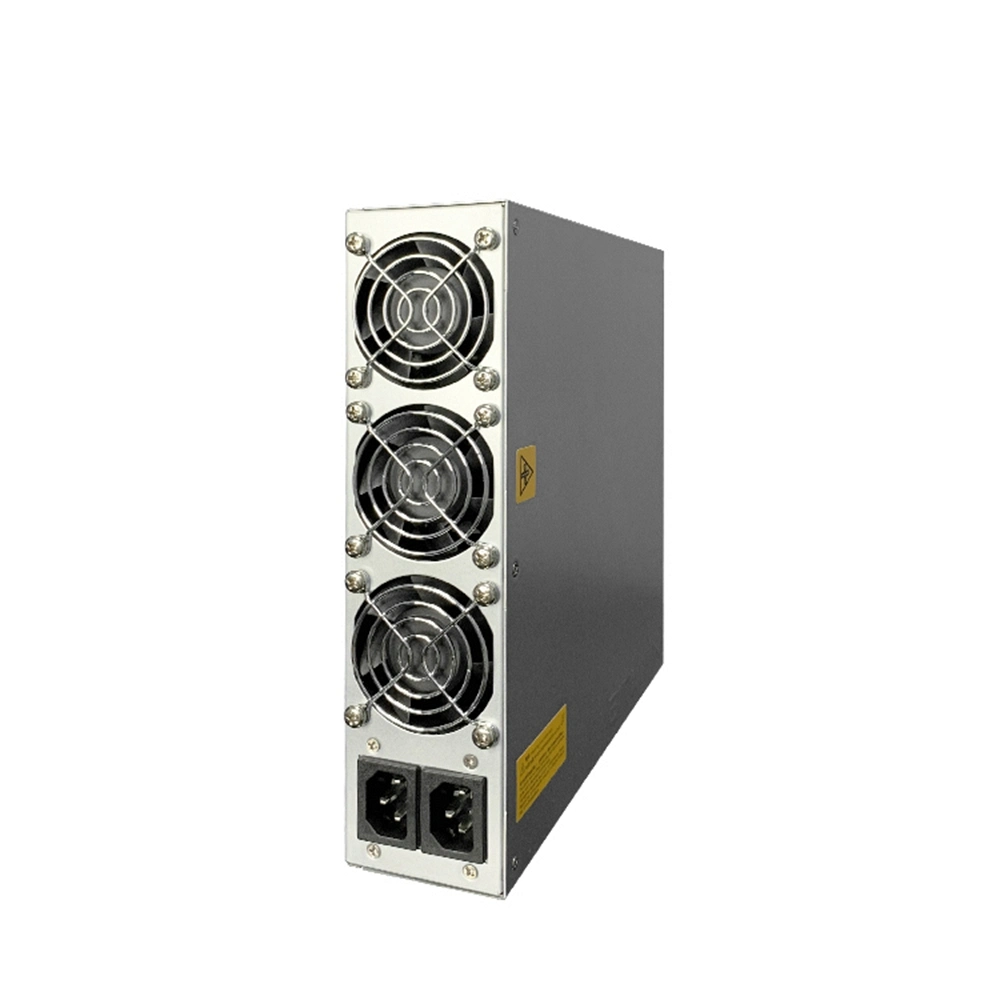

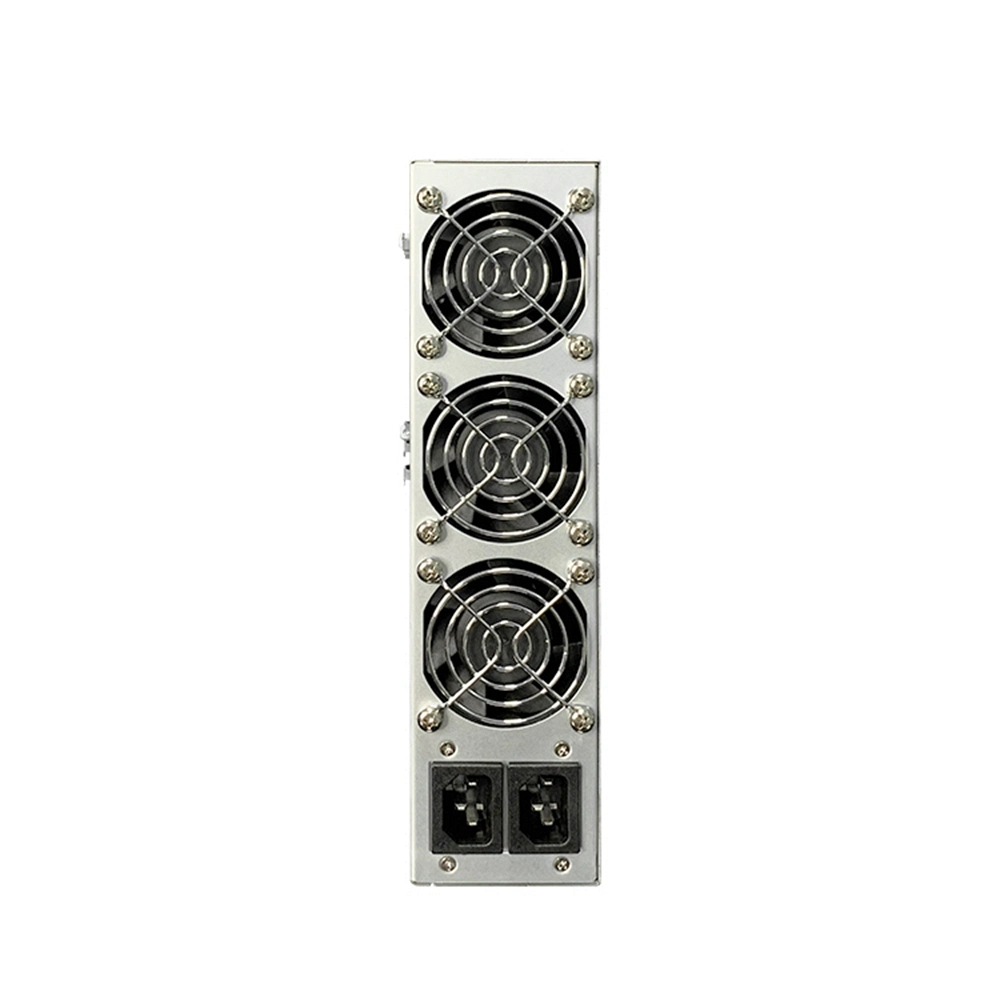

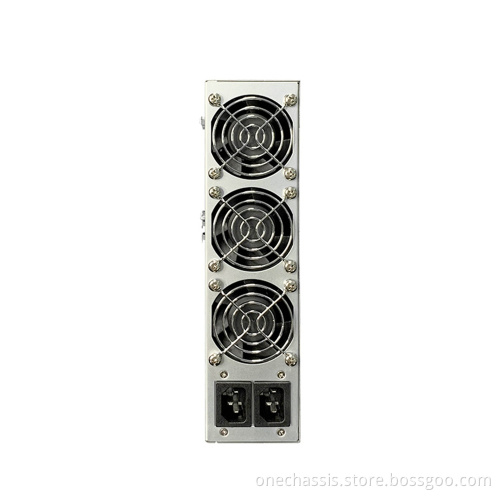

Popular manufacturer mining equipment Bitmain, has released an APW12 and APW12 power supply for such Asic miner models as Bitmain Antminer S19,S19 Pro,T19.
This unit is equipped with a power of 3600 W and an input voltage of 16 watts. The developers made a very light component, which weighs only 4 kilograms. The noise level during operation is 45 dB.
|
Specification
|
|||||
|
OUT1
|
DC Voltage
|
12V-15V
|
OUT2
|
DC Voltage
|
12.3V
|
|
Rated Current(220 V input)
|
233A
|
Rated Current
|
15A
|
||
|
|
|
Ripple & Noise
|
<1%
|
||
|
Ripple & Noise
|
<1%
|
Voltage Accuracy
|
12.2V-12.4V
|
||
|
Source Regulation
|
<1%
|
Source Regulation
|
<1%
|
||
|
Load Regulation
|
<1%
|
Load Regulation
|
<1%
|
||
|
Setup Time
|
<2S
|
Setup, Rise Time
|
<2S
|
||
|
Power off Protection Trip Time
|
>10mS
|
Power off Protection Trip Time
|
>10mS
|
||
|
Input
|
Voltage Range
|
200-240V AC
|
Protection
|
Low-voltage Input
|
80-89V AC
|
|
Frequency Range
|
47-63Hz
|
Output Short Circuit
|
Yes
|
||
|
Power Factor
|
>0.99(full load)
|
Over-current Output
|
291-350A
|
||
|
Leakage Current
|
<1.5mA(220V 50Hz)
|
Overheat Protection
|
Yes
|
||
|
Environment
|
Operating Temperature
|
-20-45ºC
|
Structure
|
Dimensions
|
254.6mm*251.6mm*63mm
|
|
Operating Humidity
|
20%-90%RH
|
Weight
|
3.6kg
|
||
|
Altitude
|
< 2000m
|
Noise
|
45dBA
|
||
