 What are PCB and FPC?

Regarding the PCB, it is the so-called printed circuit board, which is usually called a hard board. It is the supporting body of Electronic Components and a very important electronic component. PCB generally uses FR4 as the base material, also called rigid board, which cannot be bent or flexed. PCBs are generally used in places where there is no need to bend, such as computer motherboards and mobile phone motherboards.

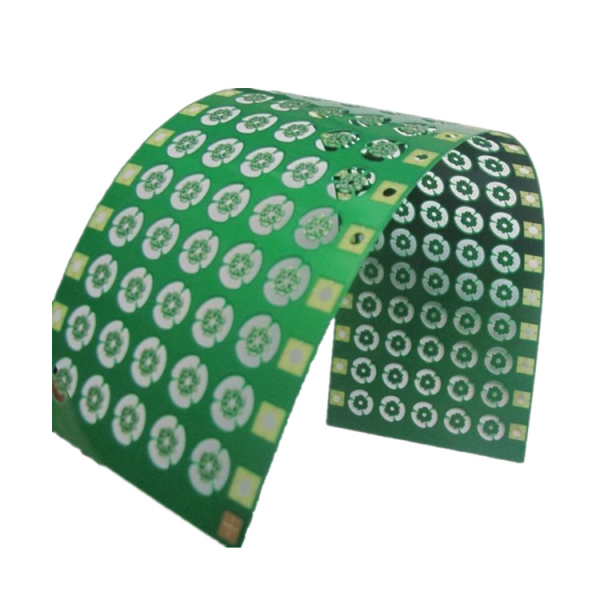

The FPC is actually a kind of PCB, but it is quite different from the traditional printed circuit board. Call it a soft board, and the full name is a flexible circuit board. FPC generally uses PI as the base material, which is a flexible material and can be bent and flexed at will. FPC generally requires repeated flexing and the linking of some small parts, but now it is more than that. At present, smart phones are thinking about bending prevention, which requires the use of FPC, a key technology.
In fact, FPC is not only a flexible circuit board, but it is also an important design method of integrated circuit structure. This structure can be combined with other electronic product designs to build a variety of different applications. Therefore, from this point on Look, FPC and PCB are very different.

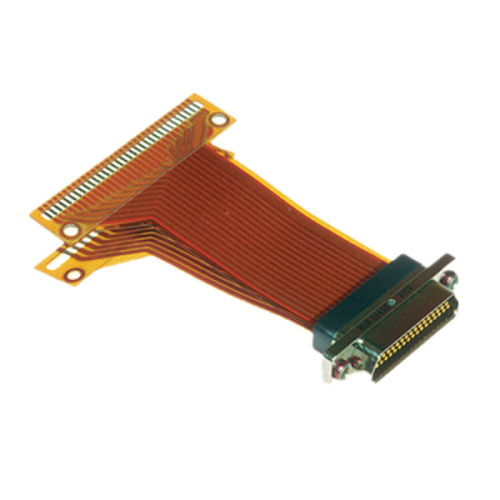

For the PCB, unless the circuit is made into a three-dimensional form by means of potting glue, the circuit board is generally flat. Therefore, PCB assembly must make full use of the three-dimensional space, and FPC is a good solution. In terms of hard boards, the current common space extension solution is to use slots to add interface cards, but the FPC can be made with a similar structure as long as the adapter design is used, and the directional design is also more flexible. Using one piece of connection FPC, two pieces of hard boards can be connected to form a set of parallel circuit systems, and it can also be turned into any angle to adapt to different product shape designs.

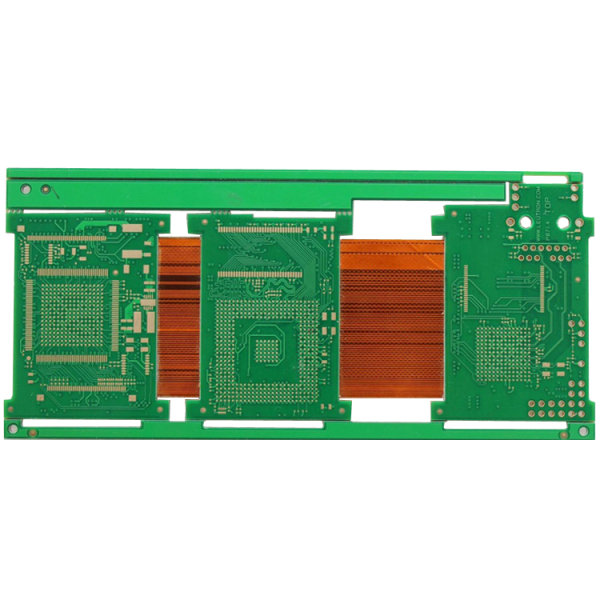

FPC can of course use Cable Connectors I/O Connectors for line connection, but Rigid-Flex Board can also be used to avoid these connection mechanisms. A single FPC can use layout to configure many hard boards and connect them. This approach eliminates electronic connectors and terminal interference, which can improve signal quality and product reliability. The figure shows a soft and hard board constructed of multiple PCBs and FPCs.
