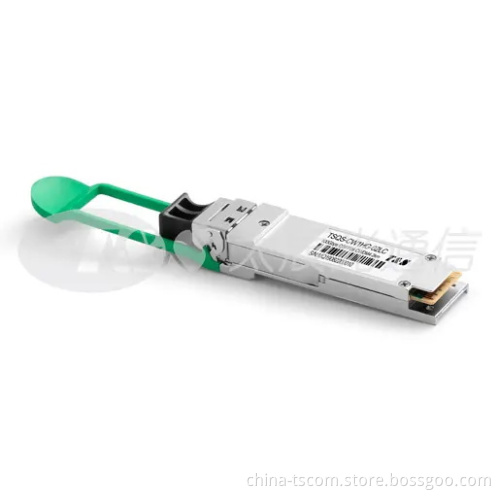

QSFP28 100G CWDM4 2K

The 100g qsfp28 er-CWDM4-2km module is a highly integrated 4x28G transceiver focused on reach, bandwidth, density and cost for high port-count 100G systems, and client-side 100G interfaces. It is compliant with the 100G 4WDM-10 MSA, which is based on the CWDM4 MSA version 1.1. It is interoperable with 100g cwdm4 transceivers over a 2 km reach.

Features of qsfp28 cwdm4
Reach: 2 km via SMF

Link budget assumes the use of KR4 FEC by the host

Uncooled CWDM DFB lasers, directly modulated

Electrical interface: retimed CAUI-4 per 100G Ethernet IEEE 802.3bm Annex 83E

User controllable Transmit Input Equalization and Receiver Output Amplitude

MSA-compliant performance monitoring via I2C interface

Fiber connector: SMF LC duplex connector

Hot-pluggable

0–70°C operating temp

Power dissipation < 3.5W

RoHS6 compliant (lead-free)


Applications of QSFP28 100G CWDM4 2k
100G CWDM4 Ethernet

InfiniBand 4x EDR
