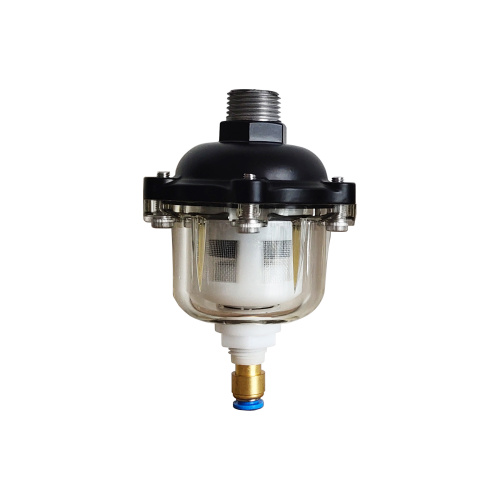

Zero Gas Consumption Automatic Drain
-
$13.5050-99 Piece/Pieces
-
$12.50≥100 Piece/Pieces
- Transportation:
- Air, Land, Ocean, Express
- Port:
- Shenzhen, Guangzhou , Shanghai
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Supply Ability: | 800PCS/Day |
|---|---|
| Payment Type: | T/T,L/C |
| Incoterm: | FOB,CFR,CIF,EXW |
| Transportation: | Air,Land,Ocean,Express |
| Port: | Shenzhen,Guangzhou ,Shanghai |
Product Description
Product Description
Product Introduction
As we know, auto drain plays very important part on whole compressed air system. No matter on the bottom of air receiver, water separator or air filter. 99.73% condensate will be discharge by auto drain which can save manual operation time and more efficiently.
Working Principle
Drains are designed with float ball drain system.The outlet of the drain will close and stop draining if the draining buoyance is smaller than the float ball's weight and the pressure from the compressed air.
It will have a trickle of drainage if the float weight and pressure are balanced.
It will open and start draining if the draining buoyance is greater than the float ball's weight and the pressure from the compressed air. It works cyclically according to the buoyance.
Product Specification
| Model No. | Inlet | Outlet | Max.working Pressure | Min.working Temperature | Max.working Temperature | Starting value of Liquid emission | Max.liquid Discharge Capacity | Dimension(mm) | ||
| W (width) | D (depth) | H (height) | ||||||||
| HAD10B | RC1/2" | Φ6 | 1.0Mpa | 1.5ºC | 85ºC | 22 ml | 84 L/H | 79 | 75 | 123 |
| HAD20B | RC1/2" | RC1/2" | 1.0Mpa | 1.5ºC | 85ºC | 72-75ml | 400 L/H | 134 | 108 | 180 |
| HAD30B | RC1/2" | RC1/2" | 1.0Mpa | 1.5ºC | 85ºC | 91-93ml | 800 L/H | 172 | 107 | 180 |
Why choose our YUKA drain
>Zero Pressure Drop ,save valuable compressed air
>Discharge the condensate liquid effectively
>Protect downstream equipment from being damaged by condensate liquid
