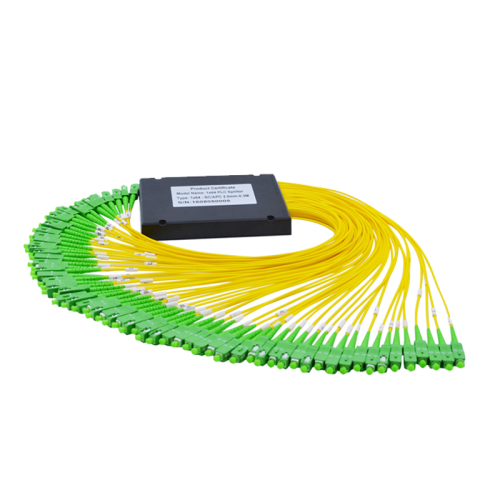

Fiber Optical 1* 64 FTTH PLC Box Splitter

Fiber Optical 1* 64 FTTH PLC Box Splitter

The disadvantages for PLC Splitter:

(1) The device manufacturing process is complex and the technical threshold is high. Currently, the chip is monopolized by several foreign companies, and there are only a few domestic companies that can produce large-scale packaging.

(2) The cost is higher than that of the fusion tapered splitter, especially in the low-channel splitter.

ABS BOX PLC Product description:

The PLC splitter is a kind of integrated waveguide optical power distribution device based on quartz substrate.It has the characteristics of small volume,wide operating wavelength range,high reliability,good uniformity of spectrophotometer and so on.For Passive Optical Network to connect the central office and terminal equipment and to achieve optical signal shunt.The 1xN and 2xN splitters evenly divided the optical signal into multiple outlets evenly from a single or dual inlet,or vice versa,to import multiple optical signals into a single or two root fiber.

Fiber Optic Component Features.

1)Good uniformity and low insertion loss;2)Low polarization dependent loss;3)Excellent environmental stability;4)Excellent mechanical;5)Compact design,suitable for installation in optical equipment;6)Wide operating temperature:-40~85 ℃;7)High reliability and stability

Applificaiton:1) FTTX Systems;2) PON Networks;3) CATV Links;4) Optical Signal Distribution;5) Local Areal Networks (LAN);6)Optic Fiber communication Systems Specification:Operating Wavelength (nm):1260~1650;Insertion Loss (dB) Max.(P/A):3.8/4.1;Uniformity (dB) Max:<0.6;PDL(dB)Max:<0.2; Rectivity (dB) Min*:55;Return Loss (dB) Min*:55(50);Operating Temperature (°C):-40~ +85

Optic Splitter Packing Details:
