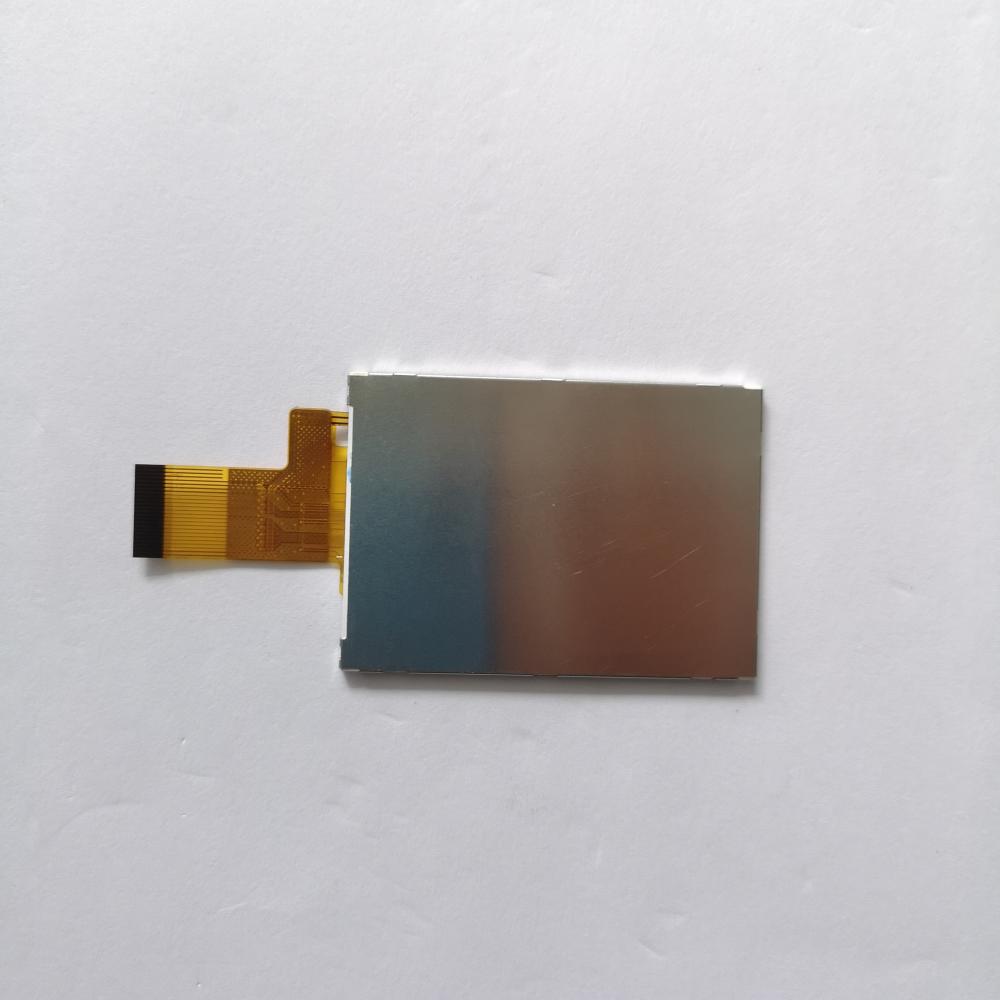

2.4 Inch LCD Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Stands for "Thin Film Transistor." These transistors are used in high-quality flat panel liquid-crystal displays (LCDs). TFT-based displays have a transistor for each pixel on the screen. This allows the electrical current that illuminates the display to be turned on and off at a faster rate, which makes the display brighter and shows motion smoother. LCDs that use TFT technology are called "active-matrix" displays, which are higher-quality than older "passive-matrix" displays. So if you ever see a TFTAMLCD monitor at your local computer store, it is a "thin-film transistor active-matrix liquid crystal display." Basically, it is a high-quality flat screen monitor.

product manual:
Model: 240032S0
Resolution: 240*320
Viewing angle: IPS
Color: 65K
Features: high brightness, full viewing angle, ultra-thin design with integrated backlight, low power consumption, square structure, etc.
Application areas: electronic cigarettes, digital cameras, medical equipment, handheld PDAs, digital electronics, smart homes, white goods, etc.

ITEM	Sandard value	Unit
Model Number	240032S0
size	2.4	Inch
LCD Type	Normally White	--
Drive element	TFT active matrix	--
Number of pixels	240*3RGB(H)X320(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.051*0.153	um
Active area	36.72(H) *48.96(V)	mm
LCM Mechanical Outline Size(WHT)	40.44572.15	mm
Viewing direction	ALL O’CLOCK	-
LCM Driver IC	ST7789V	-
LCM interface	MCU 8 BIT Interface	-
Lcm pin n count	24
Backlight leds	4	pcs
Backlight current	60-80	ma
Backligh voltage	2.8-3.3	v
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	600-800	Cd/㎡
