TI CC2640R2F FSC-BT617 | Bluetooth Module UART Interface
  • TI CC2640R2F FSC-BT617 | Bluetooth Module UART Interface
TI CC2640R2F FSC-BT617 | Bluetooth Module UART Interface
TI CC2640R2F FSC-BT617 | Bluetooth Module UART Interface
TI CC2640R2F FSC-BT617 | Bluetooth Module UART Interface

TI CC2640R2F FSC-BT617 | Bluetooth Module UART Interface

  • USD10
    ≥2 Piece/Pieces
Payment Type:
T/T, Paypal
Min. Order:
2 Piece/Pieces
Min. Order:
2 Piece/Pieces
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T,Paypal
Product Description
Product Description
Basic Parameter

It supports GAP, ATT/GATT, SMP, L2CAP profiles. It integrates Baseband controller in a small package (Integrated chip antenna), so the designers can have better flexibilities for the product shapes.



Bluetooth module model
FSC-BT617
Bluetooth version
BLE 5.0
Chipset
TI CC2640R2F
Profiles
GAP, ATT/GATT, SMP, L2CAP Profiles

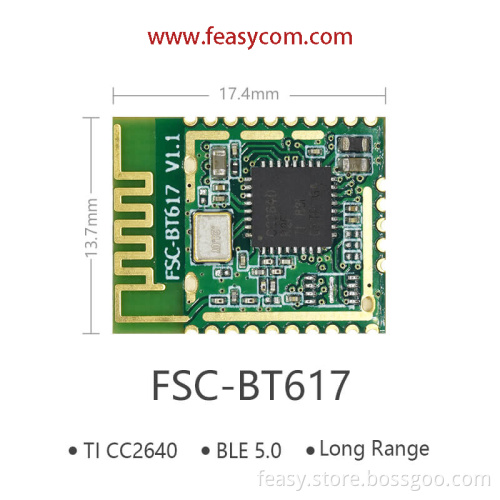

Dimension
13.7mm X 17.4mm X 2.0mm

Power supply
1.8-3.8V
Transmit power
+5dBm
Frequency
2.402-2.480GHz
Antenna
No onboard antenna, external antenna required.
Highlights
High speed, Long range, Advertising extensions



Block Diagram

FSC-BT617-Diagram-1

Features

*2.4-GHz RF Transceiver Compatible With Bluetooth low energy (BLE) 4.2 and 5 Specifications
*Integrate MCU to execute Bluetooth protocol stack.
*Low power
*Class 1.5 support(up to +5 dBm)
*Support the OTA upgrade.
*PWM
*Bluetooth stack profiles support: LE HID, and all BLE protocols.
*Integrated temperature sensor
*Support eight capacitance sensor button
*UART, I2C,SPI,12-bit ADC(200ks/S)data connection interfaces.

Applications

*Home and Building Automation
*Industrial
*Retail
*Health and Medical
*Sports and Fitness
