Industry auto welting machine

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: Yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	3000sets /month
Supply Ability:	3000sets
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001 CE
HS Code:	8452219000
Transportation:	Ocean,Land,Air
Port:	Yantian

Product Description

Product Descriptions

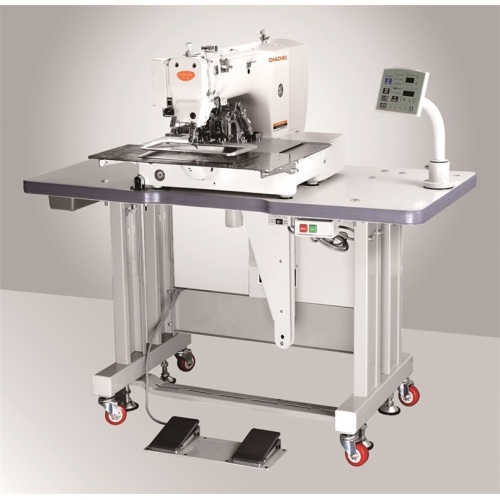

Shoe sewing machine for label,shoe, handbag, leather sewing.

Chache industrial sewing machines choose the high-quality supplier brands for our key components. Both the guide rail and the flower shaft use the Japanese THK, and the belt uses the German brand Opti belt. Electronic components and sensors use Japanese KOYO (Koyo) Or OMRON Omron brand. The middle rotary hook components and bobbin components use the Japanese Hirose , and the key bearings use the NSK brand for shoe making machine.

7" color LCD touch panel contol with easy and convenient operation
Uneven prevention function when feeding the materials
high speed sewing,low power consumption, improve the productivity and excellent sewing quality
It suitable for heavy fabric sewing (leather, thick fabric etc)
Double shuttle hook, automatic thread break detector.
Automatic feeding device with the rail system, precise sewing.

Specification

Model	CC-1010G-01S	CC-1310G-01S	CC-1510G-01S
Sewing area	Max.10×10cm	Max.13×10cm	Max.15×10cm
Line	single needle sewing
Highest sewing speed	2700rpm
Feeding device	Intermittent feeding (pulse motor driven mechanism)
Stitch length	0.05-12.7mm
Max.stitches	20,000 stitches/pattern
Work clamp lifter	pulse motor drive (height:max.30mm)
Clamp lifter	2 steps, all in one
Clamp lifter ascensional range	22mm
Hook	double shuttle hook
Data storage	USB or Memory card(CF card can save and edit any sewing patterns)
Motor	AC servo motor 550W
Air pressure	0.5Mpa 1.8L/min
Net weight	160kg
Gross weight	208kg
Packing	12585135cm
CBM	1.44m³
