computerized knotting sewing machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

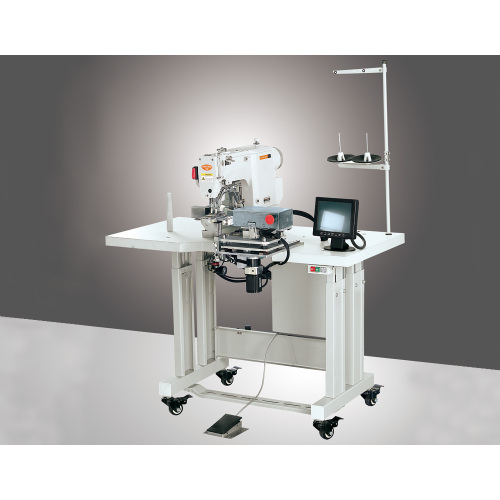

Chache brand pattern sewing machine has overlock sewing machine which applied to sew all kinds of jeans, knitted fabric, is good to applied in thick and heavy fabrics
High speed sewing and exquisite lines for high productivity, sewing speed can reach 3200rpm. such automatic sewing machine can improve the productivity 50%.
The foot pedal lifter height can be adjusted by the digital operation panel.
line-off and bird's nest prevention system
New technology design for low power comsumption, low noise, low vibration

Model	CC-430D-01S	CC-430D-02S	CC-438D
Sewing area	Max.4×3cm	Max.4×3cm	Max.4.6×4.6cm
Highest sewing speed	3200rpm	3200rpm	2700rpm
Line	single needle sewing
Feeding device	Intermittent feeding (pulse motor driven mechanism)
Stitch length	0.05-12.7mm
Max.stitches	210,000 stitches
Work clamp lifter	pnuematic (height:max.30mm)
Clamp lifter	all in one foot pedal
Clamp lifter ascensional range	17mm
Hook	semi-rotating shuttle
Tension device	standard tension device
Data storage	USB or Memory card(CF card can save and edit any sewing patterns)
Patterns	89 patterns inside the machine, up to 200 patterns, total 200,000stitches
Motor	AC servo motor 550W
Air pressure	0.5Mpa 1.8L/min
Net weight	160kg
Gross weight	208kg
Packing	12585135cm
CBM	1.44m³
