RSA0N Series Slide Potentiometer

Product number:RSA0N111900Q

Number of resistors Single connection

Installation direction Vertical

trip 100mm

Shape of operation part 9-T (T-Bar)

Length of operation section 8.2mm

Total resistance 10kΩ

Resistance law 15A

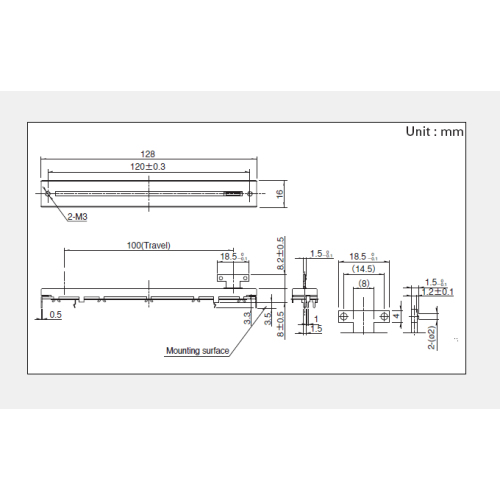

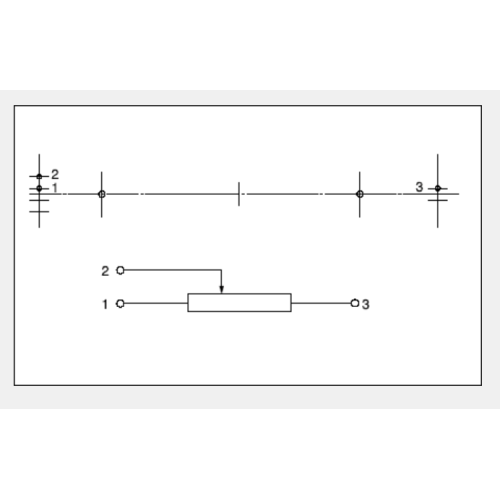

Terminal shape For PC board

Operating temperature range - 10℃ to +60℃

Electrical properties Allowable difference of total resistance ±20%

Maximum service voltage 350V AC

Rated power 0.25W

insulation resistance 100MΩ min. 250V DC

Withstand voltage 250V AC for 1 minute

Mechanical properties Action force 0.3(+0.5, -0.25)N

Stop strength 100N

Push and pull strength of operating part 50N

Transverse vibration of operating part (both sides) 1.312mm

Eccentricity of operating part (one side) 0.5mm max.

Durability Operating life 30,000 cycles

Minimum order unit (PCs.) Japan two hundred

Export four hundred
Welding Conditions

Reference examples of dipping methods

Preheat the surface temperature of the welded surface at 100 C max.

Heating time is 1 min. max.

Immersion welding temperature 260 C max.

Welding time 5S max.

Number of welds 1 time

Reference examples of manual welding methods

Pyramid head temperature 350 C max.

Welding time 3S max.

Number of welds 1 time
