RSA0V11M Series Slide Potentiometer

Product Number:RSA0V11M9001

Number of Resistors Single Connection

Installation Direction Vertical

Trip 100mm

Type Motor V fader

Operating length 10.95mm

Total resistance 10 K

Resistance Law 1B

Terminal Shape Connector

Touch Track None

Use temperature range -10 to +60 C

Permissible difference of total resistance value (+20%)

Maximum operating voltage 500V AC, 10V DC

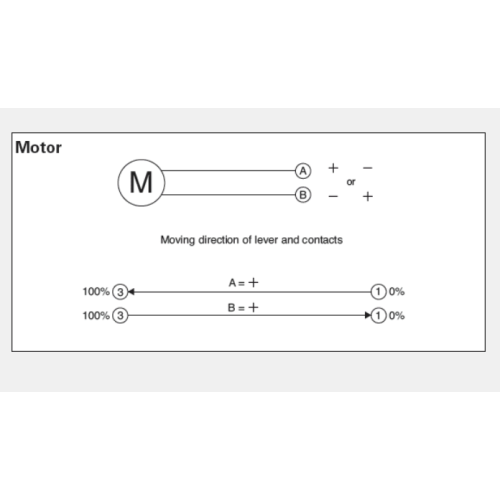

Motor rated voltage 8V DC

Maximum motor current 625mA or less (at 5V DC)

Rated power 0.5W

Insulation resistance 100Mmin. 250V DC

Voltage resistant 250V AC for 1 minute

Mechanical Performance Stop Strength 10N

Push-pull strength of operating unit 20N

Transverse vibration of operating unit (both sides) 1.752mm

The eccentricity of the operating part (one side) is 0.5mm max.

Durability - Operating life 100,000 cycles

Minimum Order Unit (pcs.) Japan 80

Export 80
Packaging specifications

Tray

Number of packages (pcs.) 1 case/Japan 80

1 box/export packing 80

Export box size (mm) 540 x 360 x 205
