65 Inch Touch Screen Overlay Film Big Foil
-
$171.43≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- ShenZhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000000 |
| Supply Ability: | 1000000 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ISO9001 And ISO14001 |
| HS Code: | 8548900030 |
| Transportation: | Ocean,Land,Air |
| Port: | ShenZhen,HongKong |
Interactive Touch Foil XTA Series
Our touch film is a new，transparent touch film,with high accuracy,easy to install on the glass,Acrylic or PC.This 65 inch touch foil is the bigest interactive touch foil of our XTA series .If you're interesting in this touch screen overlay film,we're worth your trust.
Product Overview
The principle of projected capacitive touch foil film technology belongs to projected capacitive screen. It is composed of two transparent thin films, with a grid matrix layer of X and Y axes crisscrossed by metal wires.Each matrix forms an induction unit that can sense the touch of human hands.The hand's touch signal is transmitted to a microchip controller connected to the nanowires. The microcontroller transmits the signal through an interface to a computer, which recognizes the position of the touch on the screen.
Product Quality
XTA series channel 152, generally used for 32-65 inches, suitable for touch module, digital signage, outdoor advertising machine, game entertainment, new retail and other application scenarios. These application scenarios generally require stability and easy maintenance.
Touch film XTA series is the first choice. Among them, game and entertainment scenes generally require more points and better waterproofing. XTA can be upgraded to 50 points, and large areas of water can also be touched.Touching without blind area and debugging only 1 minute.
Product Features
◇ Light weight,can achieve curved surface integrated no frame,pure and beautiful;
◇ No dead corner calibrate within 1 minute;
◇ Repair broken wire automatially;
◇ High resolution controller;
◇ Full transparency， transmittance ≥93%;
Product Details
Technical Parameters
| Product Name: | Capacitive Touch Foil 65" | Model: | GT-TF-XTA65 |
| Regular Size: | 32''-65''（XTA Series） | Other Size: | 70"-300" |
| Touch Points: | 20 Points | Deviation: | ≤0.5mm |
| Sensor: | TX : 56(MAX) RX : 96(MAX) | Scanning Speed: | 8ms |
| FPS: | 120 | Power Consumption: | 1W |
| Power Supply: | USB（5V+/-5%DC) | Calibration: | Software Calibration |
| Thickness: | ≤200um | Transmittance: | ＞93% |
| Voltage: | 5V | Transmission: | USB2.0 |
| Transmit Distance: | ≤50m | Safe Distance: | 2mm |
| OperatingnTemperature: | -20℃ ～ 70℃ | Storage Temperature: | -20℃ ～ 80℃ |
| Touch Gesture: | Click、Drag、Zoom、Rotate | Warranty： | 1 Year |
| Ambient Lightness: | Full-angle Anti-glare Illumination | Packing List: | Touch Foil*1 , Controller*1 , USB *1 |
| Support Systems: | Windows，Android，Linux | Certificates: | CE,FCC,RoHS,ISO |

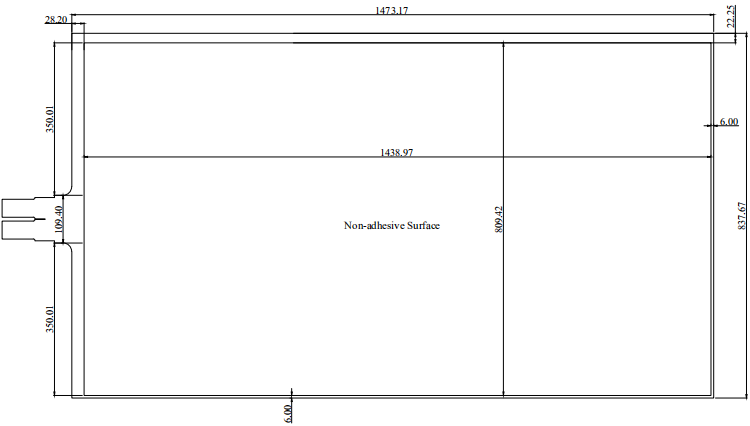

Engineering Drawing:GT-TF-XTA65
Product Customizable
Product Packaging
Product Applications
Other Products
We have our own brand -BBSTouch,already established full-automatic production line ,full-enclosed dust-free plant,and passed ISO 9001 and ISO 14001 system.In addition interactive touch foil, we also supply 4 wire resistive touch screen,5 wire resistive touch screen,capacitive touch screen ,infrared touch screen,infrared touch frame,touch monitor,touch all-in-one PC and other touch products.
