5" Mobile Cheap Hmi Capacitive Touch Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- ShenZhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 1000000 |
|---|---|
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Transportation: | Ocean,Land,Air |
| Port: | ShenZhen,HongKong |
Capacitive Touch Screen
Product Overview
Projection capacitive touch screen technology put a grid of ultra-thin sensors integrated into the glass that covers the screen.When a finger or stylus is placed on a glass panel, touch is detected if the electronic properties of the sensor grid change.The capacitive screen is sensitive to touch through the electric field of human body. It is not interfered by light and radiation. Its surface is water-proof, oil-proof and dust-proof.
Product Quality
Our PCAP touch screens are based on proven projection capacitive touch technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance. The capacitive touch screen work with standard EETI controller/chip solutions and drivers under a wide variety of operating systems, and are available in a set of standard products as well as customized designs. Our capacitive touch screens are available with proprietary technology to deliver a touch response that is drift-free and accurate in high-use applications. It's designed to be integrated into almost any bezeled application foreliability and quality.
Product Advantages
Product Parameters
| Product Name: | 5.0" Capacitive Touch Screen | Model： | GT-CTP50031-5.0 |
| Outline Size： | 120 x 75（mm） | View Area： | 109.9 x 66.5（mm） |
| Available Size: | 3.5"-65" | Touch Points: | 10 points |
| Structure: | Cover glass+Sensor Glass | Interface: | I2C |
| Ratio: | 16:9 | Transparency: | ≥99% |
| Surface Hard: | 7H | Warranty: | 1 year |
| Operating System: | Windows,Linux and Android,Mac | Response Time: | <10ms |
| Working Environment: | -20℃~+60℃,≤90%RH | Stroage Environment: | -30℃~+70℃,≤90%RH |
Engineering Drawing:GT-CTP50031-5.0

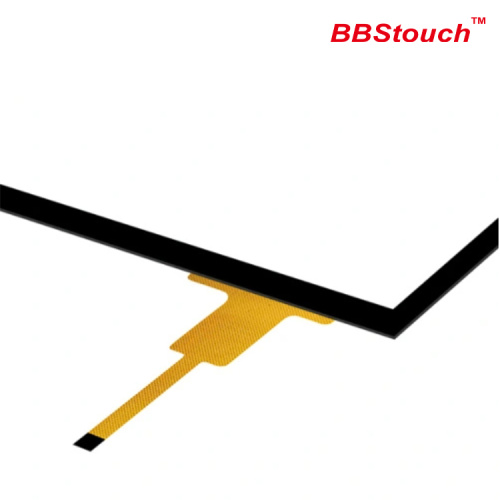

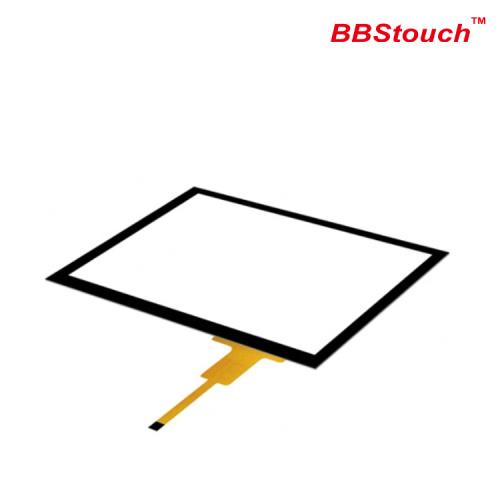

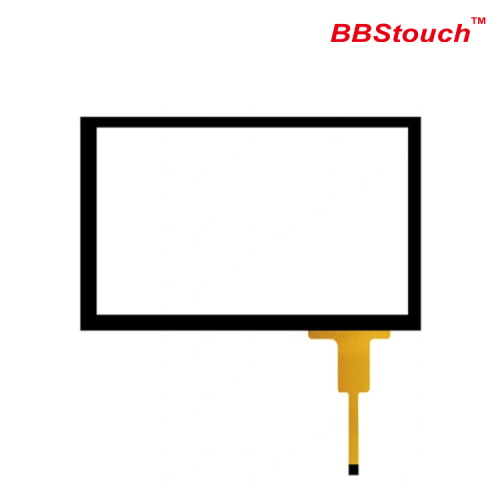

Product Show
Production Show
Product Customizable
• Screen sizes
• FPC outlet location and length
POS terminal,gaming equipment,self-service solution,interactive digital signage,healthcare/medical equipment,traffic information ,self-checking solution,industrial/factory automation/industrial tablet.
Other Products
We focus on touch application since established.Our products widely acclaimed from the indoor or outdoor customer because of our top quality products.In addition capacitive touch screen, we also supply 4 wire resistive touch screen,5 wire resistive touch screen,infrared touch screen,infrared touch frame,interactive touch foil,touch monitor,touch all-in-one PC and other touch products.
