1/2.8 inch CMOS USB camera module 1920*1080
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN, HK
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal,Western Union |
|---|---|
| Incoterm: | FOB,EXW |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN,HK |
TYU28S128-CMOS 1.00 CMOS USB camera module is comprised by 1/2.8” CMOS Image sensor,resolution at 1920*1080; It is suitable for various electronic devices that need to ingest video signals. This CMOS USB camera moduleIt has the functions of automatic white balance, automatic exposure control, automatic gain control, color
saturation and video color adjusting, /YUV2/MJPG decode, WDR, etc.
Main parameter
|
Item |
Specification |
|
|
Effective pixel |
1928H×1088V |
|
|
Pixel Size |
3µm x3µm |
|
|
Image area |
5832µmx3288µm |
|
|
Output image format |
YUV2/MJPEG |
|
|
Focusing |
Manual |
|
|
S/N radio |
42dB |
|
|
dynamic Range |
72dB |
|
|
（Default MJPEG） |
1920x1080 MJPEG@ 30fps /YUY2@5fps/ |
|
|
Supported resolution and frame rate |
1280x720MJPEG@30fps/ YUY2@10fps/ |
|
|
|
640x480 MJPEG@60fps /YUY2@30fps/ |
|
|
Shutter Type |
Electronic rolling shutter and GRR |
|
|
Interface Type |
USB2.0 High Speed |
|
|
USB wire |
Optional: 1M/2M/3M/5M |
|
|
Automatic exposure control |
Support |
|
|
Automatic white balance |
Support |
|
|
Automatic gain control |
Support |
|
|
Adjustable parameter |
rightness contrast color saturation tone clarity gamma white balance backlight contrast exposure |
|
|
Power supply and interface |
USB BUS POWER 5P-1.0mm / Socket |
|
|
System Support |
Win XP/Vista/Win7/Win8/Linux with UVC(above linux-2.6.26） |
|
|
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
||
|
Voltage |
DC5V |
|
|
Power Consumption |
|
|
|
DC+5V Voltage: current:225mA±10mA |
||
|
Working Temp. |
0℃ ～ 60 ℃ |
|
|
Storage Temp. |
-30℃ ～85℃ |
|
|
Humidity |
15~85% RH |
|
|
Dimension |
38mm（L）×38 mm（W） |

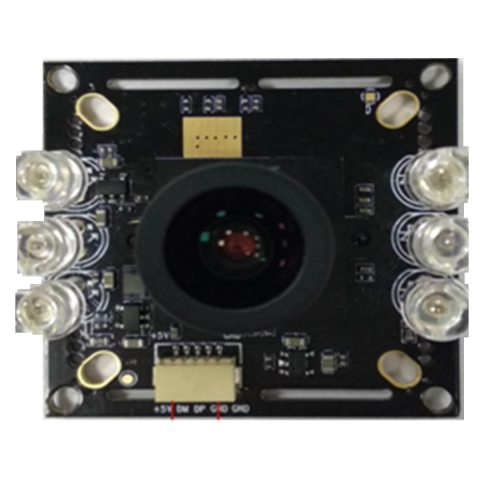

Board Picture
Accessory Cable
