M270HCA-L6B Rev.C1 Innolux 27.0 inch TFT-LCD

Innolux Corporation (hereafter called Innolux) M270HCA-L6B Rev.C1 is a 27.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 27.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Rev.C1_Ver2.0 which was released out on 11 22 2018, M270HCA-L6B Rev.C1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 607.1(W)×349.9(H)×13.2(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.87/3.01Kgs (Typ./Max.). As a AAS, Normally Black, Transmissive LCM product, M270HCA-L6B Rev.C1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/7 (Typ.)(Tr/Td); 15 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 88% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. M270HCA-L6B Rev.C1 utilizes LVDS (4 ch, 10-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 144Hz.

We are able to offer AD board for this display to support VGA video input

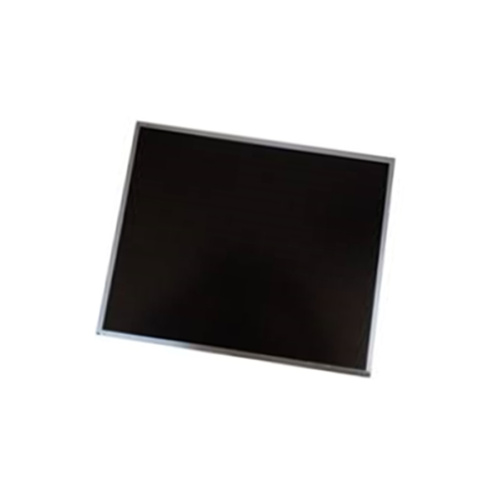

Product Picture:
