M270HCA-L6B Rev.B1 Innolux 27.0 inch TFT-LCD
  • M270HCA-L6B Rev.B1 Innolux 27.0 inch TFT-LCD
M270HCA-L6B Rev.B1 Innolux 27.0 inch TFT-LCD

M270HCA-L6B Rev.B1 Innolux 27.0 inch TFT-LCD

Payment Type:
T/T, Paypal, Western Union
Incoterm:
FOB, EXW
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
3 Days
Transportation:
Ocean, Land, Air
Port:
HK, Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: TAIWAN
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,EXW
Certificate: CE,ROHS,ISO9001
Transportation: Ocean,Land,Air
Port: HK,Shenzhen
Product Description
Product Description


M270HCA-L6B Rev.B1 is a 27.0 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. This Innolux TFT-LCD is a 27.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Rev.B1_Ver0.0 which was released out on 3 27 2018, M270HCA-L6B Rev.B1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 607.1(W)×349.9(H)×13.2(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.87/3.01Kgs (Typ./Max.). As a AAS, Normally Black, Transmissive LCM product, M270HCA-L6B Rev.B1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/7 (Typ.)(Tr/Td); 15 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 72% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. M270HCA-L6B Rev.B1 utilizes LVDS (4 ch, 10-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 144Hz.


We are able to offer AD board for this display to support VGA video input


Model

M270HCA-L6B Rev.B1

Brand

Innolux

Diagonal Size

27.0 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

1920(RGB)×1080   [FHD]

Configuration

RGB Vertical Stripe

Active Area

597.888(H)×336.312(V) mm

Outline Dim.

607.1(H)×349.9(V) ×13.2(D) mm

Treatment

Antiglare (Haze 25%), Hard coating (3H)

Luminance

300 cd/m² (Typ.)

Contrast Ratio

1000:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

8/7 (Typ.)(Tr/Td); 15 (Typ.)(G to G)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Operating Mode

AAS, Normally Black, Transmissive

Support Color

1.07B   72% NTSC

Light Source

WLED  [4 strings] , 30K hours , W/O Driver

Weight

2.87/3.01Kgs (Typ./Max.)

Frame Rate

144Hz

Touch Panel

Without

Interface Type

LVDS (4 ch, 10-bit) , 92 pins Connector

Power Supply

12.0V (Typ.)

Environment

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

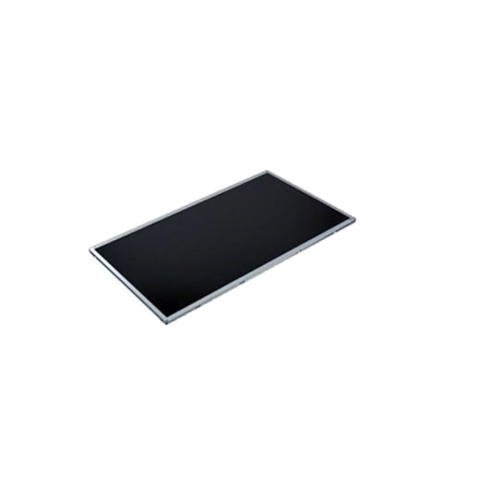

Product Picture:

M270HCA-L6B Rev.B1
