M238HCA-L5Z Innolux 23.8 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) M238HCA-L5Z is a 23.8 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 23.8 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver1.0 which was released out on 11 15 2018, M238HCA-L5Z supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 535(W)×313(H)×13(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.27Kgs (Typ.). As a AAS, Normally Black, Transmissive LCM product, M238HCA-L5Z can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, external backlight driver is additionally needed. M238HCA-L5Z utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Panel Model |
M238HCA-L5Z |
|
Panel Brand |
Innolux |
|
Panel Size |
23.8" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1920(RGB)×1080 , FHD |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
527.04(W)×296.46(H) mm |
|
Outline Size |
535(W)×313(H) ×13(D) mm |
|
Surface |
Antiglare (Haze 25%), Hard coating (3H) |
|
Brightness |
250 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Display Mode |
AAS, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
8/7 (Typ.)(Tr/Td) |
|
Display Colors |
16.7M 72% NTSC |
|
Lamp Type |
WLED , 40K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
2.27Kgs (Typ.) |
|
Signal Interface |
LVDS (2 ch, 8-bit) , 30 pins Connector |
|
Input Voltage |
5.0V (Typ.) |
|
Environment |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

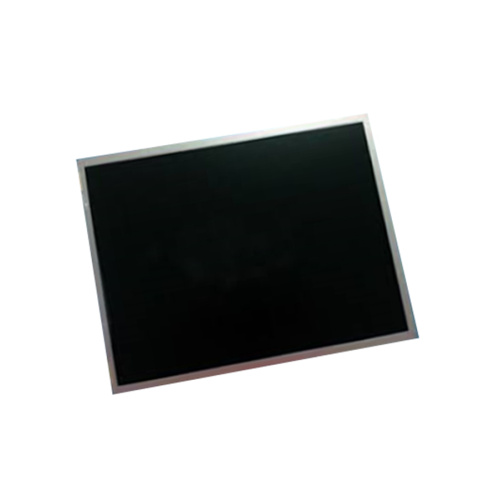

Product Picture:
