ZJ101ZA-03B Innolux 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) ZJ101ZA-03B is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . This Innolux TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. ZJ101ZA-03B supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 222.72(W)×125.28(H) mm, outline size of 235(W)×143(H)×5.2(D) mm, viewing area size of 226.34(W)×128.1(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 185/195g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, ZJ101ZA-03B can provides 250 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 7/9 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 48% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. ZJ101ZA-03B utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
|
Model Name |
ZJ101ZA-03B |
|
Manufacturer |
Innolux |
|
Screen Size |
10.1 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
1024(RGB)×600 (WSVGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
222.72 × 125.28 (H×V) |
|
Outline(mm) |
235 × 143 × 5.2 (H×V×D) |
|
Bezel Area(mm) |
226.34 × 128.1 (H×V) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
250 cd/m² (Typ.) |
|
Contrast Ratio |
500 : 1 (Typ.) (TM) |
|
Viewing Angle |
70/70/60/60 (Typ.)(CR≥10) |
|
Response |
7/9 (Typ.)(Tr/Td) ms |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K 48% NTSC |
|
Backlight |
WLED , 15K hours , With LED Driver |
|
Mass |
185/195g (Typ./Max.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 6-bit) , Connector 40 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

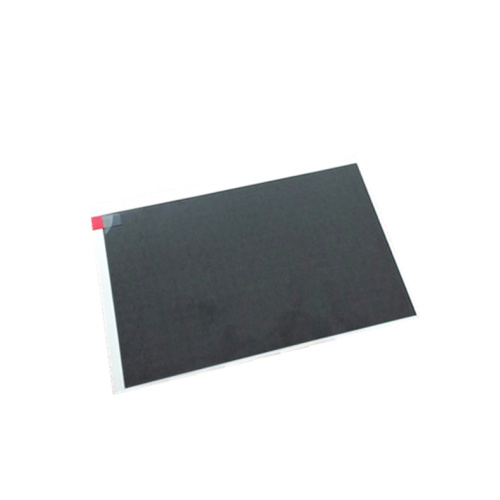

Product Picture:
