10.4 inch Industrial TFT-LCD Innolux G104X1-L04
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
G104X1-L04 is a 10.4 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, With LED Driver, without touch screen. This Innolux TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver2.9 which was released out on 9 23 2016, G104X1-L04 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 210.4(W)×157.8(H) mm, outline size of 225.5(W)×176.3(H)×9.2(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare, net weight of 430±50g. As a Super MVA, Normally Black, Transmissive LCM product, G104X1-L04 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 55% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G104X1-L04 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
G104X1-L04 |
|
Panel Brand |
Innolux |
|
Screen Size |
10.4 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
1024(RGB)×768 (XGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
210.4 × 157.8 (H×V) |
|
Outline(mm) |
225.5 × 176.3 × 9.2 (H×V×D) |
|
Bezel Area(mm) |
215.4 × 161.8 (H×V) |
|
Treatment |
Antiglare |
|
Luminance |
500 cd/m² (Typ.) |
|
Contrast Ratio |
1000 : 1 (Typ.) (TM) |
|
Viewing Angle |
88/88/88/88 (Typ.)(CR≥10) |
|
Response |
14/11 (Typ.)(Tr/Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
Super MVA, Normally Black, Transmissive |
|
Color Depth |
262K/16.2M 55% NTSC |
|
Backlight |
WLED , 50K hours , With LED Driver |
|
Mass |
430±50g |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , Connector , 30 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |

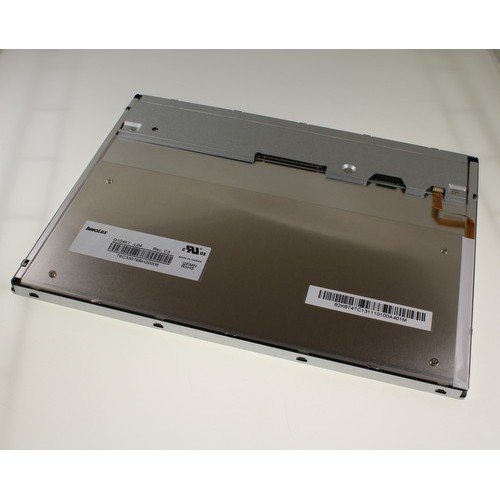

Product Picture:
