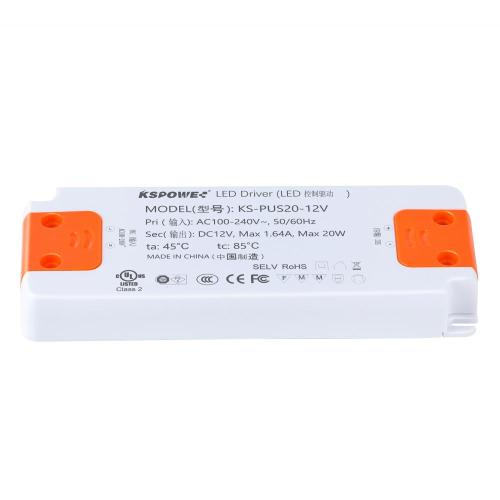

20W 12V/24V Heating Mirror Bathroom CV LED Transformer
The PUS series bathroom mirror led driver 20 Watt is one constant voltage solution, single channel, accept AC input voltage range from 100V-240V 50/60Hz, and 12 volt / 24 volt output voltage with heating function optional. The power supply is plastic case for dry, damp and wet location, defogger control relay integration. The led power transformer featuring compact ultra-thin design with high power factor ≥0.95, the mirror light driver provide 5 years warranty suitable for Bathroom, Stage, Advertising, Kitchen, Wardrobe, Display, cabinet, Freezer lighting and Anti-fog mirror lights use.
Features:
- Compact ultra thin case
- 100V-240V AC 50/60Hz Input
- Single channel & Constant Voltage mode
- Type A + B power supply
- Defogger control relay integration
- High Efficiency: up to 83% ; PF>0.95
- Automatic protection for short circuit / overload / over voltage / over temperature.
- 5-Years Warranty
- Certification: UL CE cUL FCC CCC SAA UKCA RoHS ...
- Suitable for dry, wet or damp location use
Note: Accept LOGO/color/package/case customization, OEM and ODM service
Specification:
|
NO. |
KSPUS-2012 |
KSPUS-2024 |
| Input Voltage | 100-240V 50/60Hz | |
|
Output Voltage |
12VDC | 24VDC |
| Rated Current | 1.67A | 0.83A |
| Rated Power | 20W | |
| Working Temperature |
-40℃ to +50℃ |
|
| Working Relative Humidity |
20%-90% RH,non-condensing |
|
| Note: |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25°C of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage |
|
Connect Drawing:
Warning:
Prevent to reverse polarity;
Risk of Electric Shock. When used outdoors, install only on a circuit protected by a Class A GFCI;
Risk of Fire. Istallation involves special wiring methods to run wiring through a building structure. Consult a qualified electrician;
Risk of Electric Shock. Mount the unit at a height greater than 1 foot from the ground surface.
Application:
The mirror lights led driver is available for LED strip lights, panel lights, RGB, puck lighting and cabinet light power supplies for North America or Europe market.
Manufacturer：
KSPOWER focus on switching power supply, AC/DC power adapter, Battery Charger, Led Power Supply, Triac/0-10V Dimmable LED Driver, Led Transformer in Shenzhen, GD China.
