Colorlight Super Controller Z6 Model
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Delivery Time:
- 15-30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong, China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1500 square meter/month |
| Supply Ability: | 1000 square meter/month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CCC,CE,UL,RoHS,FCC |
| HS Code: | 8528591090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong,China |
Colorlight Super Controller Z6 Model
|
Product Feature: Colorlight Super Controller Z6 Model |
·Video input ports including SDI×2, HDMI2.0×1, DVI×4;
·Support input resolution up to 3840×2160@60Hz;
·Loading capacity: 8.3 million pixels, Maximum Width/Height: 8192 pixels;;
·The input images can be spliced and zoomed according to the screen resolution;
·Support PIP function, the location and size can be adjusted freely;
·Support splicing and cascading among several controllers with synchronization strictly;
·Support 3D display;
·Support brightness and chromaticity adjustment, color gamut transformation;
·Support improved gray-scale at low brightness;
·Support HDCP2.2;
·Compatible with all receiving cards , multifunction card, optical fiber transceivers of Colorlight.
|
|
|

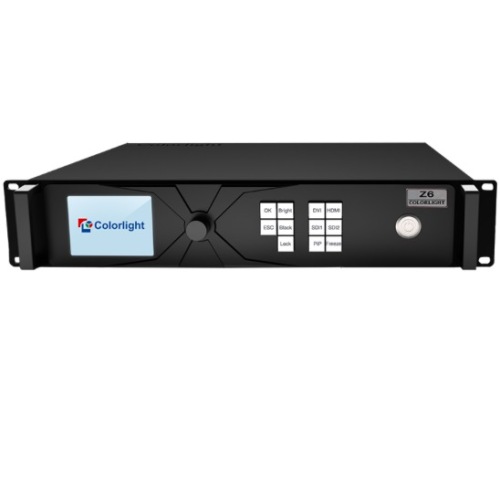

Product Image |
|
Product Parameters |
| Input Index | |
|---|---|
| SDI | 2 3G-SDI inputs |
| HDMI | HDMI2.0 input |
| DVI | 4 DVI inputs |
| Output Interface | |
|---|---|
| Gigabit Ethernet | 16 Neutrik Gigabit Ethernet outputs |
| Controlling Interface | |
|---|---|
| 100M Ethernet | 100M-Ethernet Control port (communication with PC, or access network), and can be used as Artnet control port |
| USB_OUT | USB output, cascading with next controller |
| USB_IN | USB input, which connect with PC to configure parameters |
| GENLOCK | Genlock signal input ensures synchronism of display image |
| GENLOCK_LOOP | Genlock synchronous signal loop output |
| 3D sync | Connect to 3D emitter (Optional) |
| Input Index | ||||
|---|---|---|---|---|
| Port | Number | Resolution Specification | Remarks | |
| SDI | 2 | 1080P | ||
| HDMI | 1 | EIA/CEA-861 Standard, in accordance with HDMI-2.0 standard, support HDCP2.2 |
3840x2160@60hz |
8bit supports RGB444,YCbCr444, YCbCr422,YCbCr420 10bit supports YCbCr422,YCbCr420 |
|
1920x1080@60hz |
8/10bit supports RGB444,YCbCr444, YCbCr422,YCbCr420 |
|||
| DVI | 4 |
VESA Standard, support HDCP |
1920x1080@60hz |
8/10/12bit supports RGB444,YCbCr444,YCbCr422, YCbCr420 |
| Output Index | |
|---|---|
| Color Depth | Resolution Specification |
| 8bit | 3840x2160@60hz |
| 10bit | 2880x2160@60hz |
| Specification of complete machine | |
|---|---|
| Size | 2U standard box |
| Input Voltage | AC 100~240V |
| Rated Power Consumption | 80W |
| Working temperature | -25~80℃ |
| Weight | 9kg |
|
Package case |
|
