Colorlight receiving card i9 Model
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Delivery Time:
- 15-30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong, China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1500 square meter/month |
| Supply Ability: | 1000 square meter/month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CCC,CE,UL,RoHS,FCC |
| HS Code: | 8528591090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong,China |
Colorlight receiving card i9 Model
|
Product Feature: Colorlight receiving card i9 Model Tiny size: 68*36mm, DDR2 SODIMM interface, easy for maintenance ·Supports 30bit video input, meets the HDR@4K standard ·Supports 32 sets of RGB signal parallel output ·Loading capacity: 384*256 pixels ·Supports brightness and chromaticity point-by-point calibration with 14bit accuracy ·Improved grayscale performance at low brightness ·Supports color temperature and gamut adjustment ·Supports highlight and sorting ·Seam compensation ·Low latency ·Fast upgrades and fast send out calibration coefficients ·Supports smart module to save calibration coefficients and other information on module ·Temperature, humidity, power supply voltage monitoring on cabinet and fan control ·Supports LED point-by-point error detection of module ·Supports LCD panel display ·Supports dual card backup and dual power backup ·Supports any pumping point, and realize creative displays like shaped display, spherical display, etc. ·Compatible with all series of Colorlight sending devices
|
|

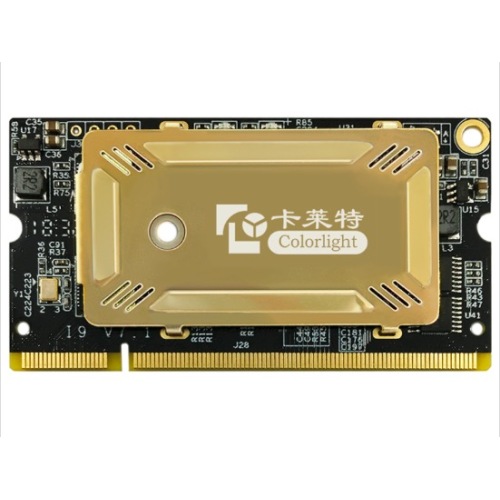

Product Image |
|
Product Parameters |
| Control system parameters | |
|---|---|
| Sending device | All of Colorlight`s sending devices |
| Capacity | Full-color: 256*256 Pixels |
| Cascade Control Area of the Largest Region | 65536*65536 Pixels |
| Network Port Exchange | Supported, arbitrary use |
| Gray Level | Maximum 65536 Levels |
| Display module compatibility | |
|---|---|
| Chip Supports | Supports conventional chips, PWM chips, lighting chips and other mainstream chips |
| Scan Mode | Two scanning methods to support refresh rate multiplier |
| Scan Type | Supports static sweep to 1/32 scan |
| Module Specifications Support | Supports 4096 pixels within any row, any column |
| Cable Direction | Supports route from left to right, from right to left, from top to bottom, from bottom to top |
| Data Sets | 32 RGB data sets |
| Data Folded | Supports 1~8 any discount to improve refresh rate. |
| Data Exchange | 32 sets of data any exchange |
| Module Snapshot | Supports any pumping point |
| Compatible device and interface type | |
|---|---|
| Communication Distance |
UTP cable≤140M CAT6 cable≤170M OPTIC FIBER transmission distance unrestricted |
| Compatible with Transmission Equipment | Gigabit switch, fiber transceiver, optical switches |
| Size | 67.6*32.9mm |
| Input Voltage | DC 3.3V~6V |
| Rated Current | 0.6A |
| Rated Power | 3W |
| Storage and Transport Temperature | -50℃~125℃ |
| Operating Temperature | -25℃~75℃ |
| Body Static Resistance | 2KV |
| Weight | 9.5g |
| Monitoring function (in conjunction with multi-function card) | |
|---|---|
| Temperature Monitoring |
Cabinet temperature monitoring between -25℃ ~ 75℃ 1 port for each card |
| Humidity Monitoring |
One port to monitor receiver card humidity range with 20% ~ 95% 1 port for each card |
| Bit Error Monitoring | Monitoring the total number of data packets and error rate to check network quality |
| Supply Voltage Monitoring | 5 ports for supply voltage monitoring |
| Smoke Monitoring |
One port for smoke monitoring and can work with relay to activate an alarm and turn off the display screen 1 port for each card |
| Full Color LCD Display Panel | Supports full color LCD display panel |
| Pixel level calibration | |
|---|---|
| Brightness Calibration | Supported |
| Chromaticity Calibration | Supported |
| Other features | |
|---|---|
| Hot Backup | Supports loop backup, double sender backup, |
| Shaped Screen | Supports various freeform display, spherical display, creative display, etc. through the date arbitrary offset |
| Program Backup |
Proprietary redundant firmware backup on card no matter how to use, upgrade, send parameters, continuous functionality |
|
Package case |
|
