Colorlight receiving card 5A-75E Model
Product Feature: Colorlight receiving card
5A-75E Model
·Integrated HUB75 interface, more convenient with less cost.
·Reduce the plug connectors, and reduce malfunction, lower failure rate.
·Superior display quality: high refresh rate, high grayscale, and high brightness with the conventional chips.
·Perfect performance under lower grayscale status.
·Better detail processing: Partial dark at row, reddish at low gray, shadow problems can be solved.
·Support 14 bits high-precision point-by-point calibration in the Brightness and the chromaticity.
·Support conventional chips, PWM chips and lighting chips.
·Support any scan mode from static to 1/32 scan.
·Support any pumping point and data arbitrary offset to realize various freeform display, spherical display, creative display, etc.
·Support 32 groups of RGB signal output.
·Large load capacity.
·Advanced design, high quality components, rigorous aging test, zero malfunction of final products.
·Wide working voltage range with DC3.3~6V.
·Support reserve connection protection.
·Compatible with Gigabit NIC, S series Sender, Z series Sender, C series Sender, etc.
|
|
|

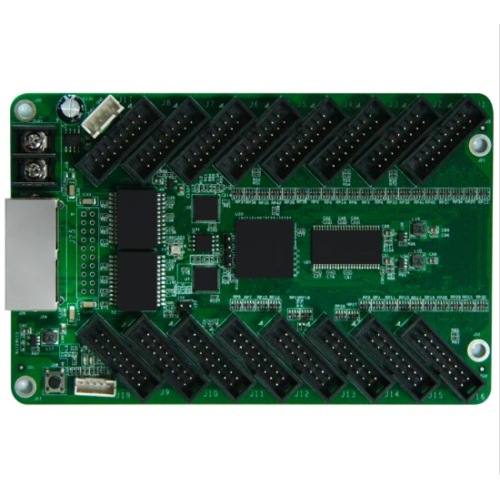

Product Image |
|
Product Parameters |
| Control system parameters | |
|---|---|
| Sending device | Gigabit NIC, S series Sender, Z series Sender, C series Sender, etc |
| Control area of every card | Full-color: 256*256 Pixels for conventional card |
| Correction area of every card | 256*256 Pixels |
| Cascade control area of the largest regional | 65536*65536 pixels |
| Cascade card number | 65536 PCS |
| Network port exchange | Support, arbitrary use |
| Synchronization |
Nanosecond synchronization between the card and the card |
| Display Quality | |
|---|---|
| Refresh rate for conventional chip |
Static: 16000Hz 1/8 scan: 10000Hz |
| Serial frequency | 0.2MHz-41.7MHz |
| Gray Level | Maximum 65536 levels |
| Minimum unit of OE values | 8ns, 8ns multiples steps |
| Gray scale compensation | Each level grayscale compensate separately |
| Display module compatibility | |
|---|---|
| Chip supports |
Support conventional chips, PWM chips, lighting chips and other mainstream chips |
| PWM chip supports | Support hundreds of different specifications of the PWM chip, such as MBI, MY, SUM, etc |
| Scan mode | Conventional mode and high refresh rate mode to support refresh rate multiplied |
| Scan type | Support static sweep to 1/32 scan |
| Module Specifications Support | Support 4096 pixels within any row, any column |
| The direction of the cable | Support route from left to right, from right to left, from top to bottom, from bottom to top |
| Data Groups | 32 RGB data groups |
| Data folded | Support 2 split, 4 split in the same direction, which refresh rate significantly improved |
| Data exchange | 32 groups of data for any exchange |
| Module snapshot | Support any pumping point |
| Data serial transmission | RGB, R8G8B8, R16G16B16, etc in the form of serial |
| Compatible device and interface type | |
|---|---|
| Communication distance |
UTP cable≤140M CAT6 cable≤170M Optic fiber: Single Mode Fiber Transceiver≤20KM Multi-Mode Fiber Transceiver ≤550M (Use RP Repeater to extend unlimited) |
| Compatible with transmission equipment |
Gigabit switch, fiber transceiver, optical switches |
| Power interface | Wire terminal |
| HUB Interface Type |
HUB75 |
| Physical parameters | |
|---|---|
| Size | 143* 93mm |
| Input voltage | DC 3.3V-6V |
| Rated current | 0.6A |
| Rated power | 3W |
| Storage and transport temperature | -50℃ to 125℃ |
| Operating Temperature | -20℃ to 75℃ |
| Body static resistance | 2KV |
| Weight |
100g |
| Monitoring function (in conjunction with mutil-function card) | |
|---|---|
| Monitoring functions | Real time monitoring environment information like temperature, humidity, smog |
| Remote Control | Support for relay switch to turn on/off the power supply of equipments remotely |
| Other features | |
|---|---|
| pixel level calibration | Support |
| Hot Backup | Support loop backup and dual-machine backup |
| Shaped screen | Support various freeform display, spherical display, creative display, etc. through the data arbitrary offset |
|
