Colorlight receiving card i5A Model
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Delivery Time:
- 15-30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong, China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1500 square meter/month |
| Supply Ability: | 1000 square meter/month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CCC,CE,UL,RoHS,FCC |
| HS Code: | 8528591090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong,China |
Colorlight receiving card i5A Model
|
Product Feature:Colorlight receiving card i5A Model |
|
|
·More perfect display effect by adopting new processing core.
·High refresh rate, high gray scale and high brightness with conventional chips.
·Perfect performance under lower grayscale status.
·Better detail processing: Partial dark at row, reddish at low gray, shadow problems can be solved.
·Support the effective display at first grayscale value.
·Support 14 bits high-precision point-by-point calibration in the brightness and the chromaticity.
·Support conventional chips, PWM chips and lighting chips, etc.
·Support any scan mode from static to 1/32 scan.
·Support any pumping point and data arbitrary offset to realize various freeform display, spherical display, creative display, etc.
·Support signal output for 16 groups of RGBR` and 20 groups of RGB, 32 groups as extended.
·Large load capacity.
·Wide working voltage range with DC 3.3 -6V.
·Support dual receiving card backup, loop backup, and dual-machine backup, etc.
·Compatible with Z series Sender, S series Sender, C series Sender, etc.
|

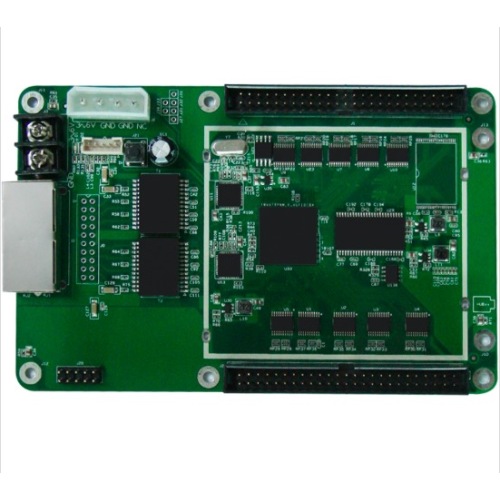

Product Image |
|
Product Parameters |
| Control system parameters | |
|---|---|
| Sending device | All Colorlight's sending series |
| Control area of every card | Full-color: 256*256 Pixels, for special applications the column can be extended to 1024 pixels |
| Cascade control area of the largest regional | 65536*65536 pixels |
| Cascade card number | 65536 PCS |
| Network port exchange | Support, arbitrary use |
| Synchronization |
Nanosecond synchronization between the card and the card |
| Display Quality | |
|---|---|
| Refresh rate for conventional chip |
Static: 64*64, up to 16000Hz 1/8 scan: 128*128, up to 10000Hz
|
| Serial frequency | 0.2MHz-41.7MHz |
| Gray Level | Maximum 65536 levels |
| Minimum unit of OE values | 8ns, 8ns multiples steps |
| Gray scale compensation | Each level grayscale compensate separately |
| Display Module Compatibility | |
|---|---|
| Chip supports |
Support conventional chips, PWM chips, lighting chips and other mainstream chips |
| PWM chip supports | Support hundreds of different specifications of the PWM chip, such as MBI, MY, SUM, etc |
| Scan mode | Conventional mode and high refresh rate mode to support refresh rate multiplied |
| Scan type | Support static sweep to 1/32 scan |
| Module Specifications Support | Support 4096 pixels within any row, any column |
| The direction of the cable | Support route from left to right, from right to left, from top to bottom, from bottom to top |
| Data Groups | 16 RGBR` data groups,20 RGB data groups |
| Data folded | Support 2 split, 4 split in the same direction and 2 split in the opposite direction, which refresh rate significantly improved |
| Data exchange | 16 groups of data for any exchange |
| Module snapshot | Support any pumping point |
| Data serial transmission | RGB, R8G8B8, R16G16B16, etc in the form of serial |
| Data Expansion | Support the D signal as a clock extension, the total amount of data can be extended to 32 |
| Compatible device and interface type | |
|---|---|
| Communication distance |
UTP cable≤140M CAT6 cable≤170M Optic fiber: Single Mode Fiber Transceiver≤20KM Multi-Mode Fiber Transceiver ≤550M (Use RP Repeater to extend unlimited) |
| Compatible with transmission equipment |
Gigabit switch, fiber transceiver, optical switches |
| DC power interface | Wire terminal |
| HUB Interface Type | All types |
| Physical parameters | |
|---|---|
| Size | 143* 93mm |
| Input voltage | DC 3.3V-6V |
| Rated current | 0.6A |
| Rated power | 3W |
| Storage and transport temperature | -50℃ to 125℃ |
| Operating Temperature | -25℃ to 75℃ |
| Body static resistance | 2KV |
| Weight |
100g |
| External interface | |
|---|---|
| LCD display | Support |
| Monitoring function (in conjunction with mutil-function card) | |
|---|---|
| Monitoring functions | Temperature, humidity, smoke, relay switch |
| Remote Control | Support for relay switch to turn on/off the power supply of equipments remotely |
| Pixel Level Calibration | |
|---|---|
| Brightness calibration | Support |
| Chromaticity calibration | Support |
| Other features | |
|---|---|
| Hot backup | Support loop backup and dual machine backup, seamless switch |
| Shaped screen | Any offset of the 16sets of data, drawn at random points, the performance of data exchange control profiled screen. |
|
Package case |
|
