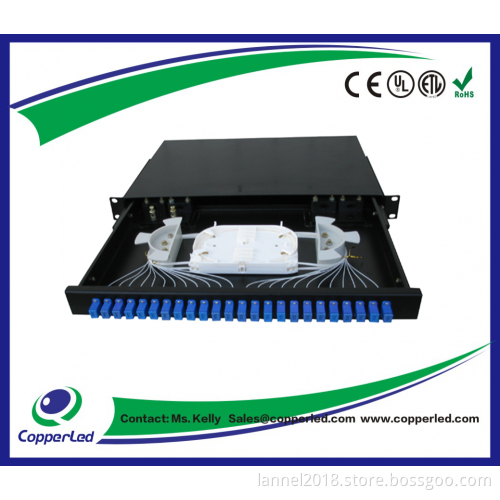

FO Patch Panel SC Type 24Port 19'' 1U Rack Mounted
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 21 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Ningbo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB |
| Certificate: | CE, UL, ETL,RoHs |
| Transportation: | Ocean,Land,Air |
| Port: | Ningbo |
APPLICATION:
The product can be used on the terminal of the optical cables,different types and structures,the diameter of which are within 20mm tray.
STRUCTURAL FEATURES:
1. All property indexes are in accordance with national YD/T814-1996 standard
2. The body make use of cold rolling steel,and the surface use the technique of dim
plastic.strong adhesive force,artistic and durable.
3. Distinctive design of 4 cable enrance and fiber exit of 24 cores duplex SC
adapters.
4. Cable entrance are sealed with oil resistance NBR to increase the flexibility.user
can choose to prick the entrance.
5. Overlapping fiber splice tray and separate insulation earthing unit make the
disposition of the cores ,expanding the capacity and cable-earthen
flexible,convinient and safe.
MAIN TECHNICAL SPECIFICATIONS:
1. External size: 480*250*1U
2. Winding radius ≥40mm
3. Fiber capacity: 48cores
4. installing: rack mounted
5. Working temperature:-25℃~+45℃
6. Atmosphere pressure:70~106Kpa
7. Insulated Resistance:2×10MΩ/500V(DC)
