45W Power Adapter For Apple Magsafe 2

$7.50

≥100 Bag/Bags

Min. Order:: 100 Bag/Bags

Min. Order:: 100 Bag/Bags

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	shenzhen,China
Productivity:	100,000pcs/week
Supply Ability:	100,000pcs/week
Payment Type:	T/T,D/P,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT
Certificate:	CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE
HS Code:	8504401300
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

The laptop charger is a next-generation industry standard that allows charging, data transfer, and video—all in one simple connector. We are professional manufacturer of all brands of new USB laptop charger and USB-C PD wall charger, we can offer 12W 29W 30W 45W 61W 65W 87W 90W laptop your device safe with multiple protections, including over current protection, over voltage protection,short circuit protection, over heating protection, overload protection.

Specifications

Specifications

Model No.

YAPS02C

AC Input

Nominal Input Voltage

AC 100V~240V

Input Voltage Range

AC 95V~265V

Input Frequency

50/60Hz

DC Output

Output Voltage

14.85V

Output Current

3.05A

Output Power

45W

DC Connector Size

Flat head magnet（magsafe 5 pin）

Line Regulation

2%

Load Regulation

5%

Ripple Noise

180 Mvp-p

Efficiency

>85%

Output Cable Standard

0.5mm2 Pure Copper

Output Cable Length

1.5m normally or customized requirement

Environment

Operating Temperature

0°C ~40°C

Operating Humidity

5%~95%RH

Storage Temperature

-20°C ~85°C

Storage Humidity

5%~95%RH

Protection

Over Load Protection

Short Circuit Protection

Over Current Protection

Over Temperature Protection

Certificates

CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE

Dimensions

Adapter Size

7.5*7.5*3.2CM

Adapter Weight

290G

Inner Box Size

19*13*4.7CM

Inner Box Weight

40G

PCS/CTN

50PCS

Outer Carton Size

48.5*32*40CM

Outer Carton Weight

860G

GW/CTN

17360G

Package

Inner Box

Normally neutral brown box or customized requirement

Outer Carton

Normally neutral standard carton or customized requirement

Warranty

Guarantee

30 days

Warranty

2 years

Terms and Conditions

MOQ

100PCS for mixed order

Payment Terms

T/T, L/C, PayPal, western union

Delivery Time

3-5 days

Manufacturing Process

1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping

Test Procedures

1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

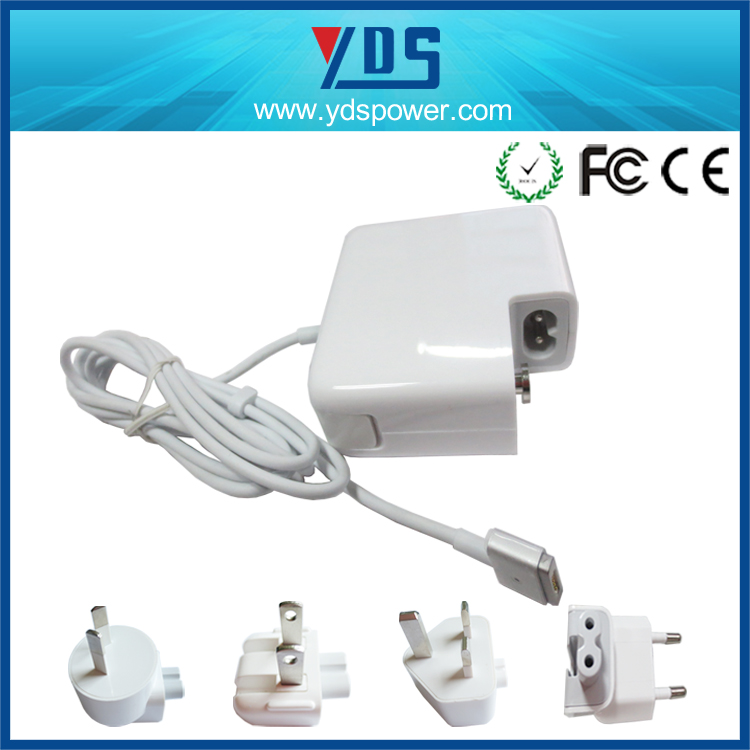

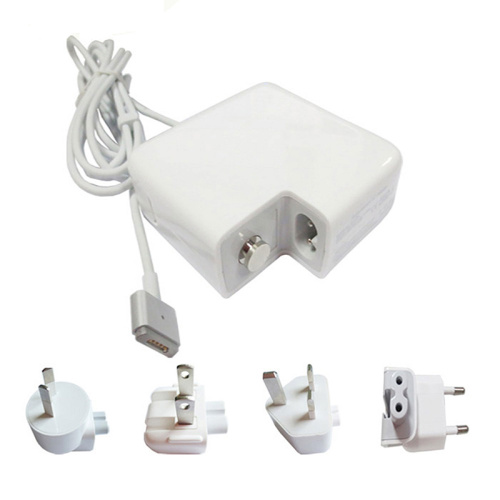

Pictures:
