Mini 2SMD 2835 sinage led module
  • Mini 2SMD 2835 sinage led module
  • Mini 2SMD 2835 sinage led module
  • Mini 2SMD 2835 sinage led module
Mini 2SMD 2835 sinage led module
Mini 2SMD 2835 sinage led module
Mini 2SMD 2835 sinage led module

Mini 2SMD 2835 sinage led module

Payment Type:
L/C, T/T, Western Union
Incoterm:
FOB, CIF
Min. Order:
10000 Bag/Bags
Min. Order:
10000 Bag/Bags
Delivery Time:
10 Days
Transportation:
Ocean, Land, Air
Port:
Shekou, Yantian, Sungang
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 20000/day
Supply Ability: 3000000/Month
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CIF
Certificate: ISO9001
HS Code: 9405409000
Transportation: Ocean,Land,Air
Port: Shekou,Yantian,Sungang
Product Description
Product Description

Mini led module,small size 30*7.5*4.3mm with beaming angle 120°,3 years warranty, and available for 3-6cm depth signs,120° beaming angle with even light.


Mini led module project


Mini Led Module Features

Sourced by high output SMD2835, good color conformity and no spot. 99.99% gold thread, pure copper bracket coated with silver

SDCM≤5 each BIN.

Special lens design, 120°beaming angle with even light.

Well sealed: anti-dusting, anti-moisture, waterproof, anti-shock. 20 pcs Max. in a series connection.

CE, RoHS and UL certified.

Items

Parameters

Part Number

ZE02QA1

CCT(K)

7000K

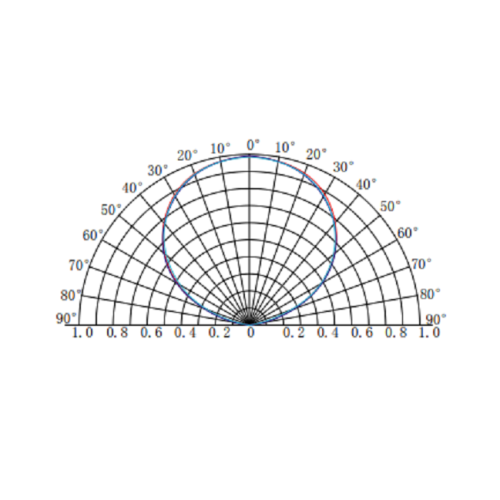

Beaming Angle(°)

120

CRI(Ra)

≥75

Luminous Flux(lm)

20

Voltage(V)

DC12

Power(W)

0.32

Driving Method

Constant Voltage

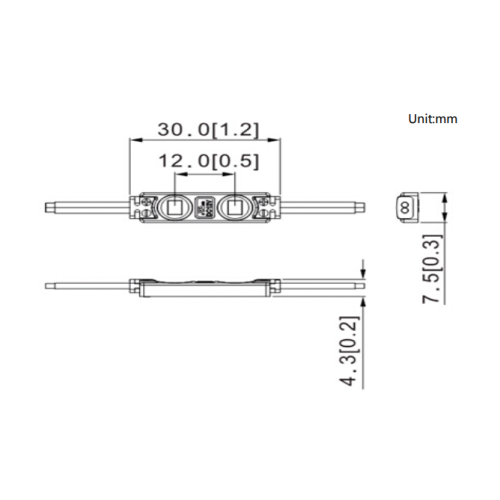

Dimension(mm)

30*7.5*4.3

Weight(g)

9.57

Working Tem.(℃)

-25~+60

Storage Tem.(℃)

-25~+70

Protection Grade

IP65


Mini Led Module Reference Scheme

Width(mm)

Depth(mm)

Size(mm)

Square(m²)

Distance(mm)

Qty(pcs)

Density(pcs/m²)

Illumination(lux)

A30

30

450*420

0.18

30

50

278

5500-6500

A40

40

470*440

0.2

40

46

230

4400-5400

A50

50

490*460

0.22

50

41

186

3800-4500

A60

60

510*480

0.24

60

41

171

3000-3700



Wire Connection

20pcs max mini led module

Mini Led Module Packing specification


Part Number

ZE02QA1

Carton dimension(mm)

490*450*220

Bags per carton

20

Quantity per carton(pcs)

10000

Net Weight(kg)

17.80(1±10%)

Gross Weight(kg)

19.31(1±10%)
