XPM FTTA CPRI cable assembly instead of Fullaxs

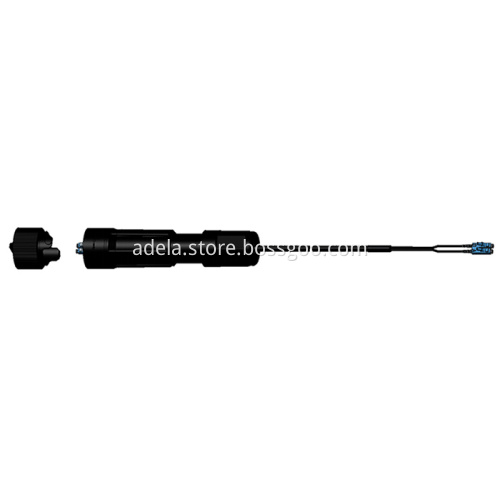

The XPM CPRI cable assembly is for Ericsson RRU device instead of Fullaxs LC ,it is low cost but excellent performance .

1. Product Structure
Designation P/N. E/N. Material
1 Cable OSK002_01 -- Outdoor Optical Cable, G657A2, Single-mode,
2 Core with 0.9 mm Fiber, OD 4.8 mm, Black LSZH
2 Connector -- -- LC Duplex for Single-mode Fiber, Blue
3 Hood -- -- Tube for LC Connector, White
4 Protective -- -- Flexible Protective with Steel Tube, OD Max.3.0 mm
5 Identifier -- -- Heat Shrinkable Tube, Yellow
6 Identifier -- -- Heat Shrinkable Tube, White
7 Transition -- -- Molding, Black, OD7.5±0.5 mm, L=17±1mm
8 Label -- -- Plastic Label, Waterproof
A -- -- Fiber A, 9/125/245 μm, Red, Tight Tube, OD 0.9 mm
B -- -- Fiber B, 9/125/245 μm, Blue, Tight Tube, OD 0.9 mm
Note: Area A must withstand +95°C;

2 Product List
KS P/N                            KS E/N                         Designation
OSK002_01_LPC_LPC/1       ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 1m
OSK002_01_LPC_LPC/2       ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 2m
OSK002_01_LPC_LPC/3       ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 3m
OSK002_01_LPC_LPC/5       ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 5m
OSK002_01_LPC_LPC/10     ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 10m
OSK002_01_LPC_LPC/20     ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 20m
OSK002_01_LPC_LPC/30     ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 30m
OSK002_01_LPC_LPC/50     ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 50m
OSK002_01_LPC_LPC/70     ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 70m
OSK002_01_LPC_LPC/100   ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 100m
OSK002_01_LPC_LPC/150   ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 150m
OSK002_01_LPC_LPC/200   ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 200m
OSK002_01_LPC_LPC/250   ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 250m
OSK002_01_LPC_LPC/300   ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 300m
OSK002_01_LPC_LPC/500   ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 500m

3 Fiber Structure
Standards ITU G.657 A2 / IEC60793-2-50 B6_a2
Cladding Diameter 125 ± 0.7 μm
Coating Diameter (Uncolored) 245 ± 7 μm
Concentricity Error Core / Cladding ≤ 0.5 μm
Concentricity Error Cladding / Coating ≤ 12.0 μm
Cladding Non-Circularity ≤ 1.0 %
Coating Non-Circularity ≤ 6.0 %

4 Fiber Requirements
Cable Cut-Off Wavelength λcc (nm) ≤ 1260
Polarization Mode Dispersion (ps/√km) ≤ 0.2
Zero Dispersion Wavelength λo (nm) 1300 - 1324
Zero Dispersion Slope S0 at λo (ps/nm2•km) ≤ 0.092
Attenuation Typical, (In Cable) 1310 / 1550 nm (dB/km) ≤ 0.35 / ≤ 0.21
Attenuation Maximum, (In Cable) 1310 / 1550 nm (dB/km) ≤ 0.40 / ≤ 0.25
Chromatic Dispersion 1310 / 1550 nm (ps/nm•km) ≤ 3.5 / ≤ 18.0
Bending Loss 1550 nm, R = 7.5 mm (dB, 1 turn) ≤ 0.5
1550 nm, R = 10 mm (dB, 1 turn) ≤ 0.1
1550 nm, R = 15 mm (dB, 10 turn) ≤ 0.03
