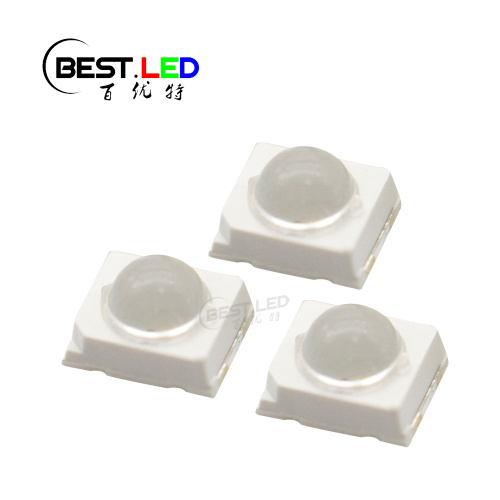

850nm Infrared LED 2835 Dome Lens 60-degree 50mA

850nm Infrared LED 2835 Dome Lens 60-degree 50mA

Get Latest Price

Min. Order:: 4000 Piece/Pieces

Min. Order:: 4000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	EXW,FOB,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shenzhen

Product Description

What is the difference between 850nm and 940nm IR?

When we use both of this IR LED for camera, 850nm LED will offer brighter light than 940nm LED and the camera will most sensitive to 850nm wavelength. On the other hand, 940nm have a longer wavelength so that it's almost invisible. Which make it much more easy to hide when it use in hunting camera. But people can not see the different from appearance if these LED is not working. Because when we produce it same 2835 SMD LED frame, dome lens. They will look totally same to each other. The only way to distinguish them is to light them up. The brighter one will be 850nm and dimmer one will be 940nm LED.

2835FIRC85E10I50A60 850nm Infrared LED 2835 Dome Lens 60-degree 50mA

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	1000	V
Service lige under normal conditions	Time	60000	H
Warranty	Time	2	Years
Antistatic bag	Piece	2000	Bag

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Rating	Unit
Forward Current	IF	50	mA
Forward Voltage	V	1.5-1.7	v
Luminous Intensity	IV	40	mw/sr
Wavelength	λP	850	nm
Packing	Piece	2000	Reel
Viewing angle	2θ1/2	60	Deg
