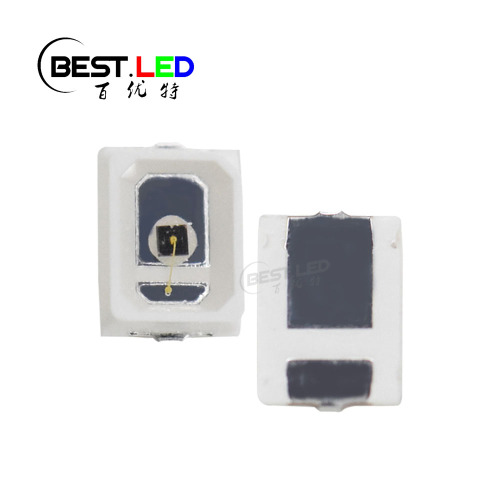

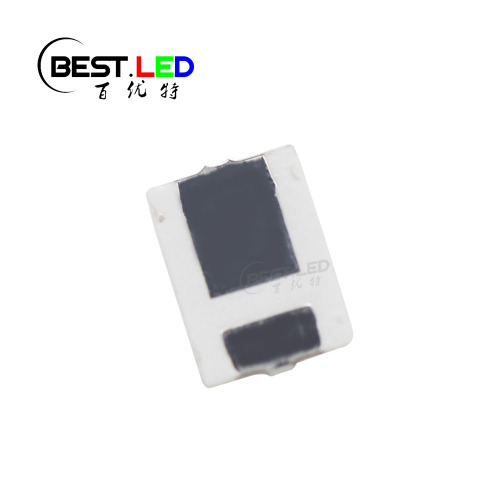

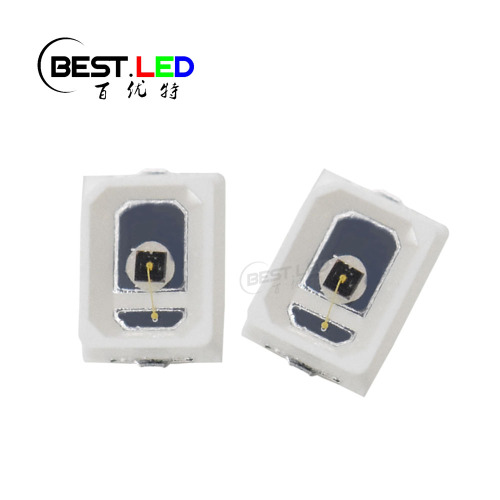

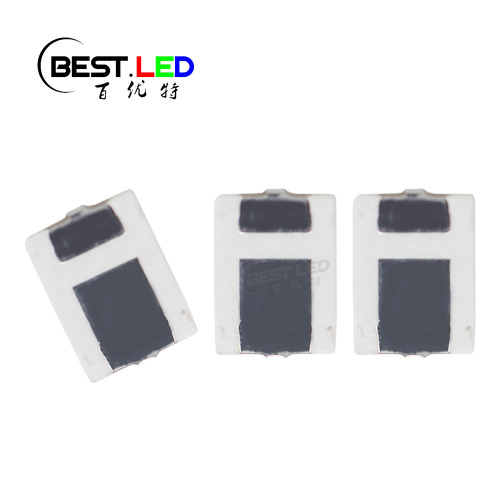

Mid IR 780nm LED 2016 SMD LED

Get Latest Price

Min. Order:: 4000 Piece/Pieces

Min. Order:: 4000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	30000000/Month
Supply Ability:	30000000/Month
Payment Type:	T/T,Paypal,Others
Incoterm:	FCA,FOB,CIF,EXW
Certificate:	ISO:9001
HS Code:	8541100000
Transportation:	Ocean,Land,Air,Express
Port:	SHENZHEN

Product Description

780nm LED is typically considered to be within the range of infrared light, and there are many infrared LEDs that emit light in this wavelength range. There are some general characteristics of a 780nm IR LED: 1. Wavelength: The LED emits light at a wavelength of 780nm, which is in the near-infrared range; 2. Power output: The power output of the LED depends on the specific product, but typically ranges from a few milliwatts to several watts. 3, Lifespan: The lifespan of the LED depends on the quality of the product and the operating conditions. Typically, SMD LED type of IR LED it can last for 50000 of hours.

Electrical Parameters:

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	1.5	-	1.7	V	IF=100mA
Radiated Power	PO	-	20	-	mw/sr	IF=100mA
Dominant Wavelength	λp	780			nm	IF=100mA
Half Width	λ△		25		nm	IF=100mA
Viewing Half Angle	θ1/2		120		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
