2835 SMD LED 1W 880nm 3 Chips LED

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 2835 SMD IR LED -

2835FIRC-88ES14I300-3P

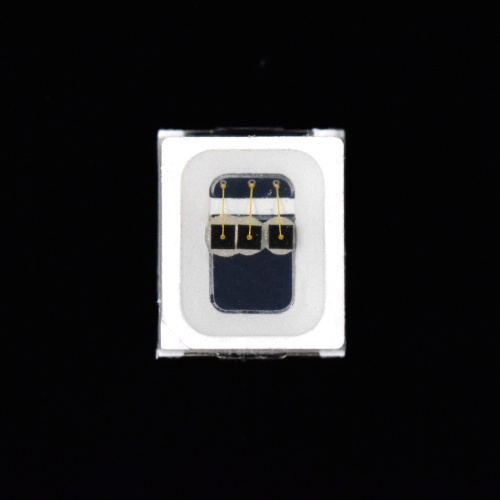

There have a cooling rib on the bottom of 2835 SMD LED, so that this 2835 SMD IR LED can handle more current and power than 3528 SMD IR LED or 3014 SMD IR LED ect. As you can see in the picture, we packaged 3 chips inside of the 2835 SMD LED case. With this way, we can got more diffused and bigger radiation area 880nm IR Emitter. With 3 chips 880nm LED inside, this 880nm LED can handle 300mA operation current. If your design don't have that much space for mounting SMD LED, but you do need 3 chips LED in the circuit for your product. These 880nm 3 chips LED won't let you disappointment on the performance. Do you need some high power 880nm LED for your application? The other wavelength such as 940nm LED with 3 chips, 850nm LED with 3 chips are all availble. Contact us for your application and design now!

880nm led 3 chips smd led 2835 PLCC2

- Size: 3.5*2.8*0.8mm

- Chip Number: 3 chips

- Color: 880nm IR LED

- Type: Surface mount device

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

3chips led

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	600mw
Pulse Forward Current	IFP	1500mA
Forward Current	IF	300mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	4000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Radiant Intensity	Ee		20	30	mw/sr	IF=60mA
		50		70		IF=150mA
		90		120		IF=300mA
Viewing Angle	2q1/2		120		deg	IF=150mA
Peak Wavelength	λp	880	890	910	nm	IF=150mA
Spectral Bandwidth	Dl		50		nm	IF=150mA
Forward Voltage	VF	1.2	1.3	1.6	V	IF=60mA
		1.3	1.5	1.7		IF=150mA
		1.6	1.8	2.0		IF=300mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
