2835 SMD LED 1W 730nm 3 Chips LED

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

- 2835 SMD IR LED -

2835FIRC-73ES14I300-3P

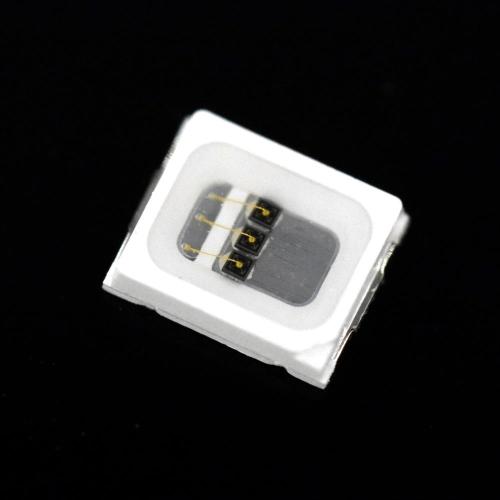

730nm led 3 chips smd led 2835 PLCC2

- Size: 3.5*2.8*0.8mm

- Chip Number: 3 chips

- Color: 730nm IR LED

- Type: Surface mount device

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

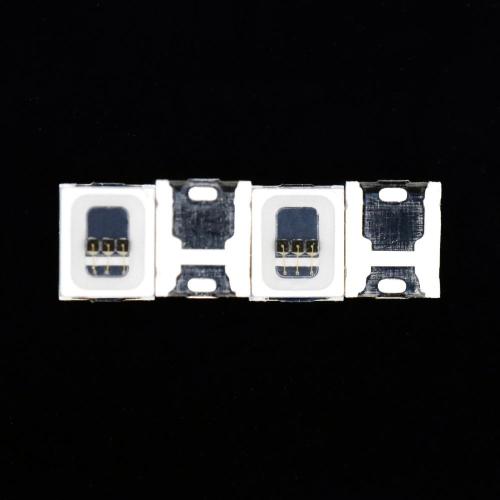

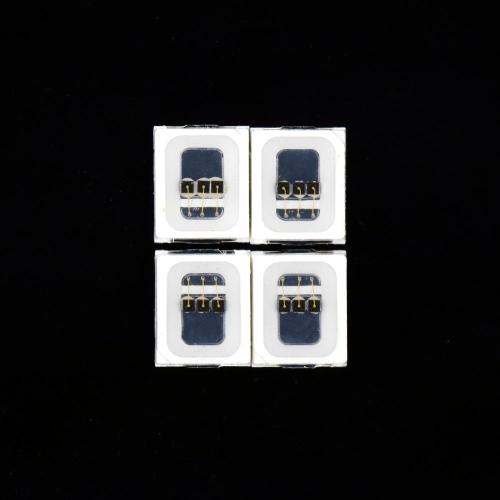

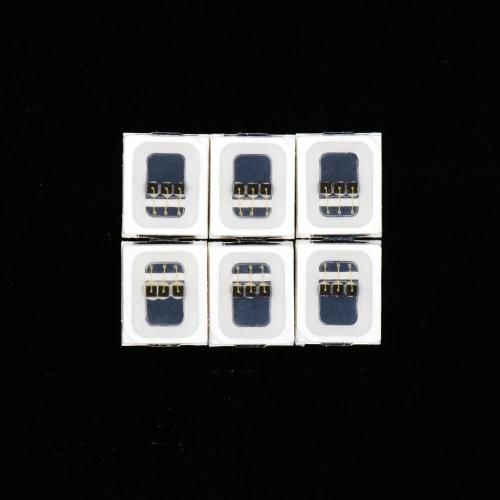

3chips led

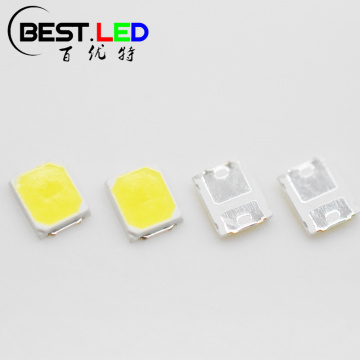

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	600mw
Pulse Forward Current	IFP	1500mA
Forward Current	IF	300mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	4000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Radiant Intensity	Ee		20	30	mcd	IF=60mA
		50		70		IF=150mA
		90		120		IF=300mA
Viewing Angle	2q1/2		120		deg	IF=150mA
Peak Wavelength	λp	730	740	748	nm	IF=150mA
Spectral Bandwidth	Dl		50		nm	IF=150mA
Forward Voltage	VF	1.5	1.7	1.9	V	IF=60mA
		1.6	1.8	2.0		IF=150mA
		1.7	1.9	2.1		IF=300mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
